DTC P0117 & DTC P0118: ECT Sensor
›
Wiring Diagram
DTC P0117 & DTC P0118: ECT Sensor: Wiring Diagram

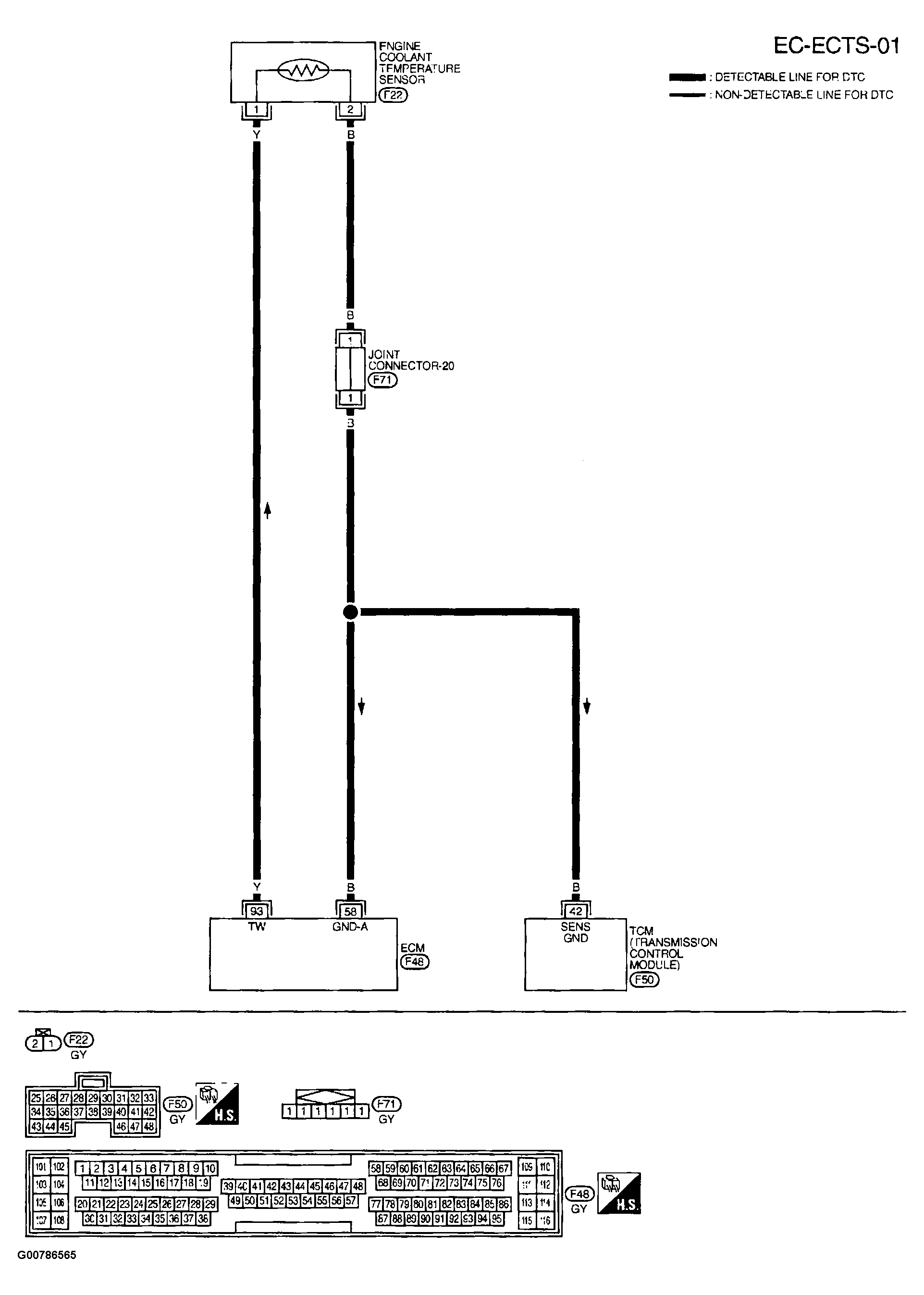

Fig 1: Displaying ECT Sensor Wiring Diagram (EC-ECTS-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
