Diagnostic Procedure

INSPECTION START
1. Turn ignition switch ON .
2. Select CAN COMM SIGNALS in DATA MONITOR mode with CONSULT-II.
3. Print out the CONSULT-II screen.

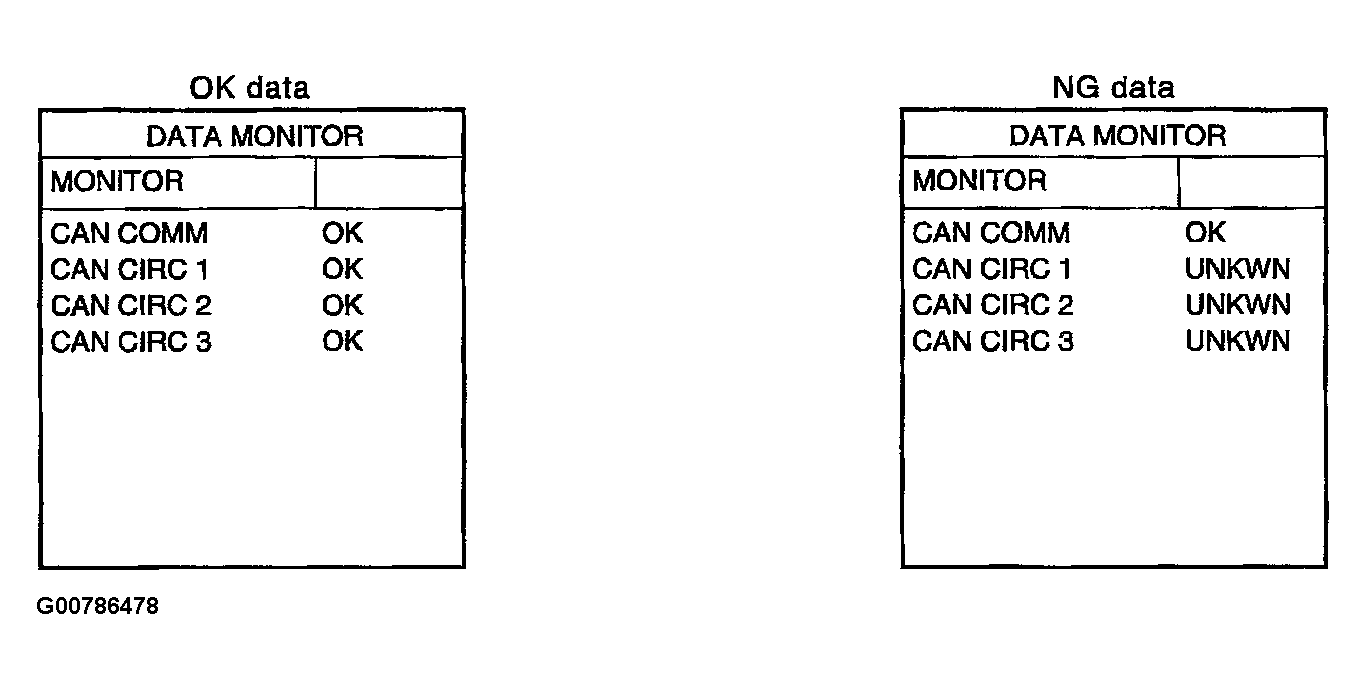

  Fig 1: Displaying CONSULT-II CAN COMM SIGNALS Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Go to CAN SYSTEM (FOR TCS MODELS) or CAN SYSTEM (FOR VDC MODELS) .
