DTC U1000 & DTC U1001: Can Communication Line
›
Wiring Diagram
DTC U1000 & DTC U1001: Can Communication Line: Wiring Diagram

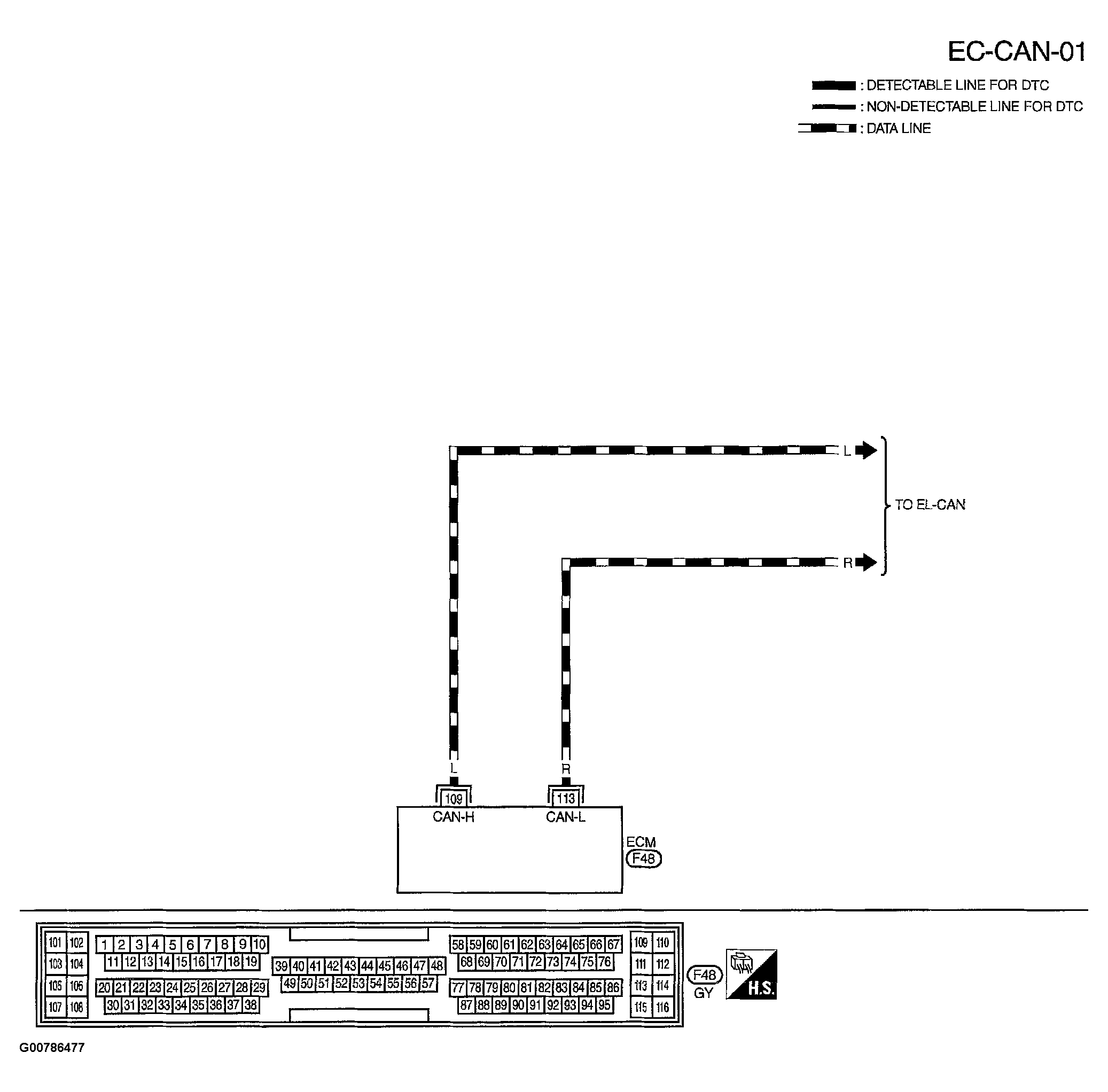

Fig 1: Displaying Wiring Diagram (EC-CAN-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
