Data Link Connectors: Wiring Diagram

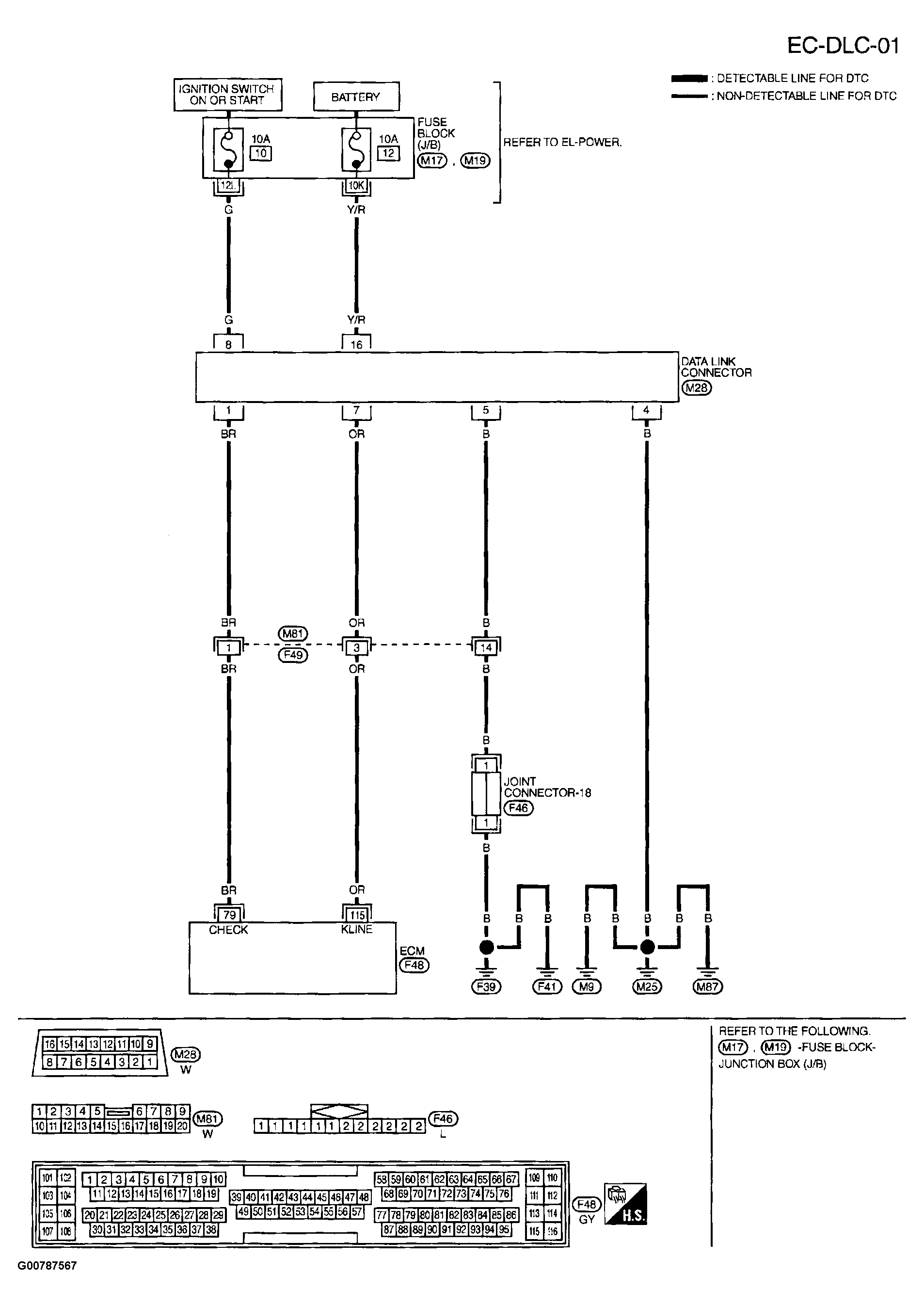

Fig 1: Displaying Wiring Diagram (EC-DLC-01)
G00787567Courtesy of NISSAN MOTOR CO., U.S.A.
