Input/Output Signal Chart
Input/Output Signal Chart

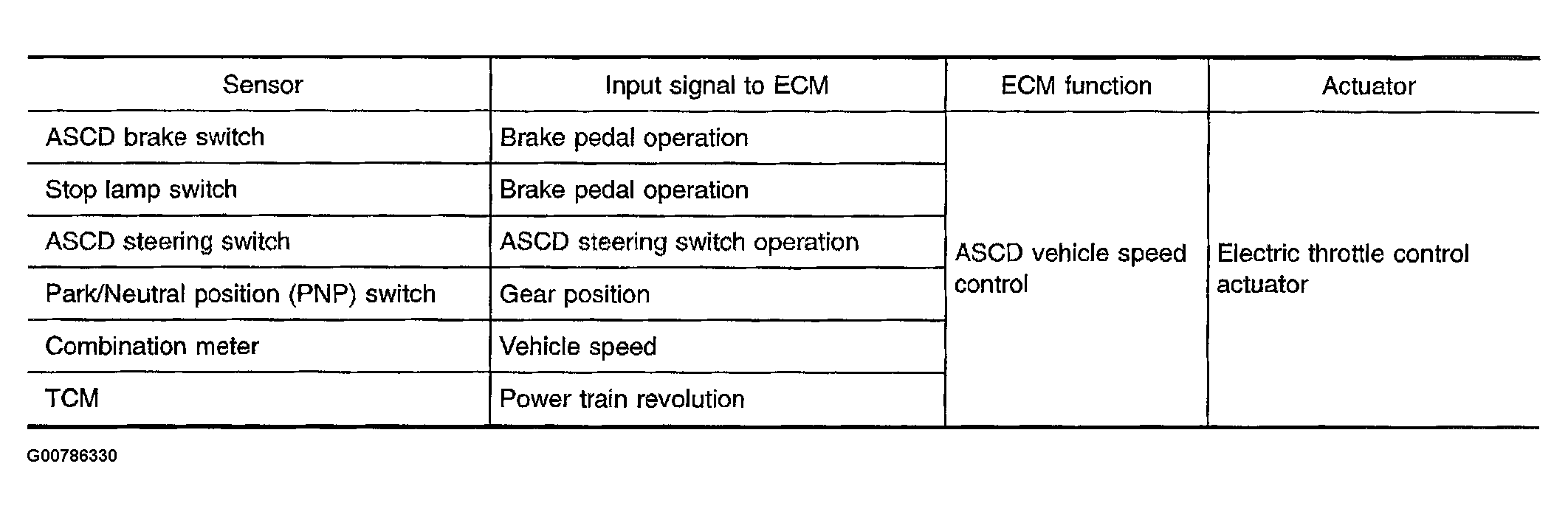

Fig 1: Automatic Speed Control Device Input/Output Signal Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
