Engine And Emission Basic Control System Description
›
Electronic Ignition (EI) System
›
Description
›
Input/Output Signal Chart
Input/Output Signal Chart

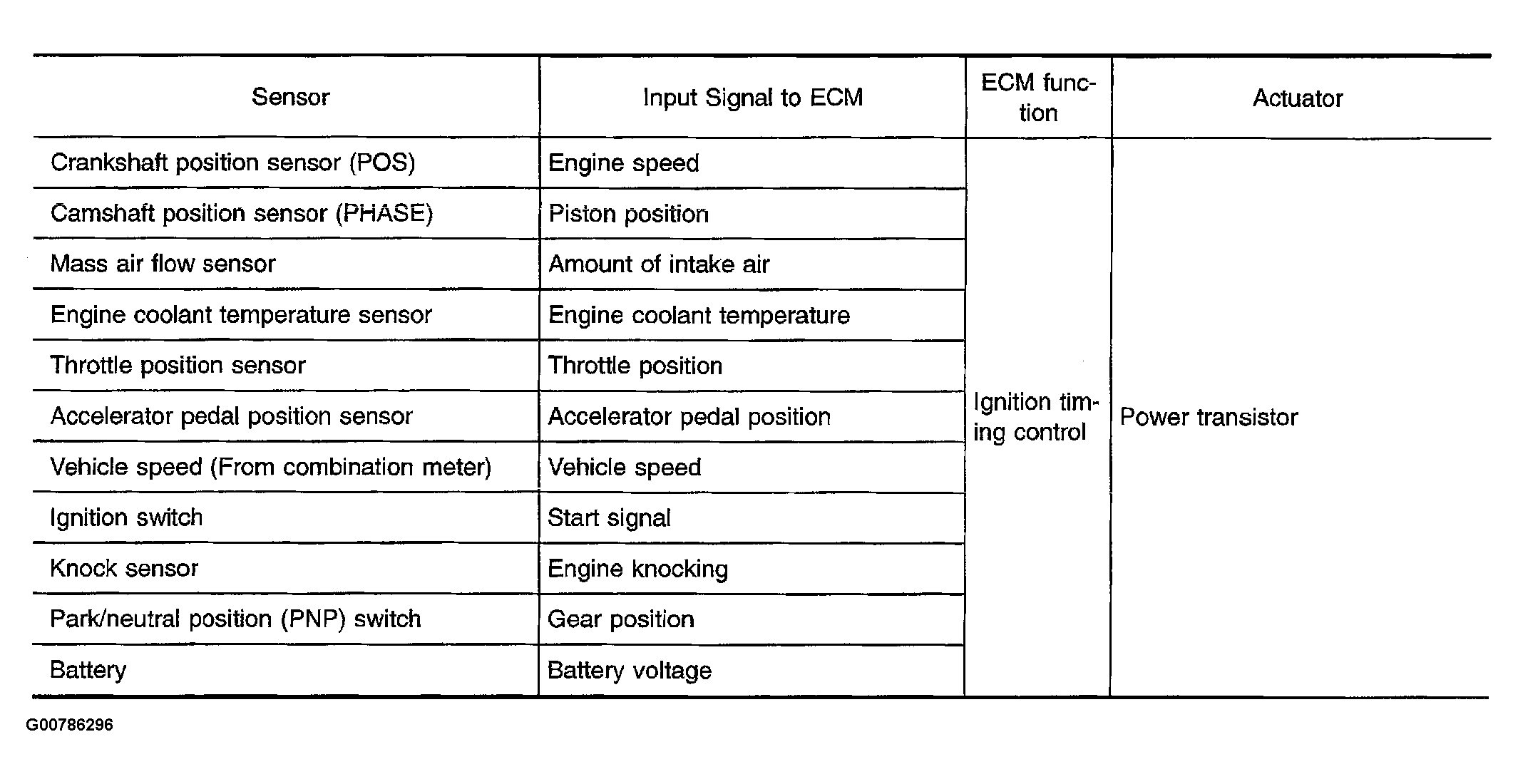

Fig 1: Electronic Ignition System Input/Output Signal Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
