System Chart
System Chart

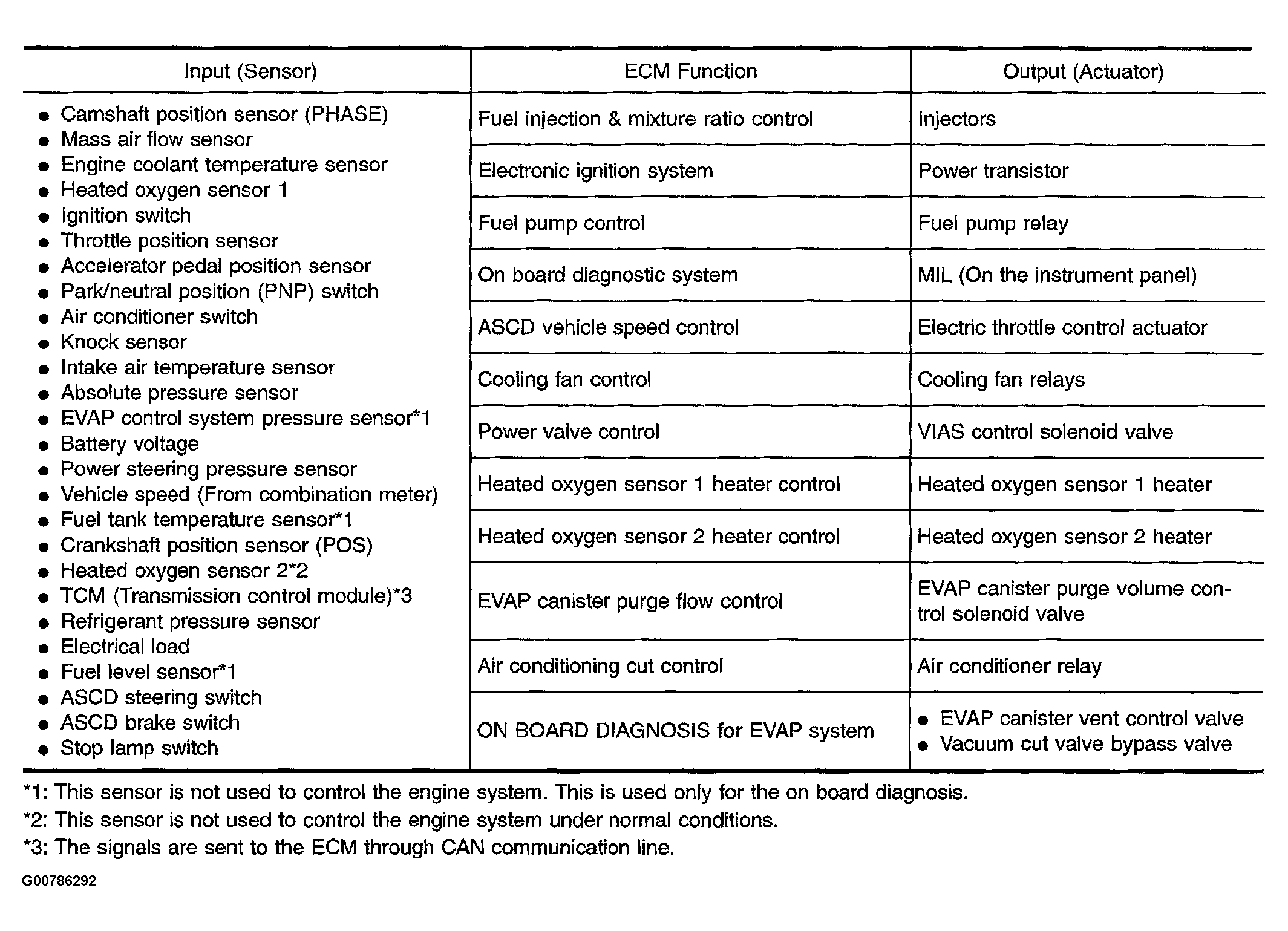

Fig 1: ECM Function And Input/Output Components Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
