Vacuum Hose Drawing

Refer to SYSTEM DIAGRAM for Vacuum control system.

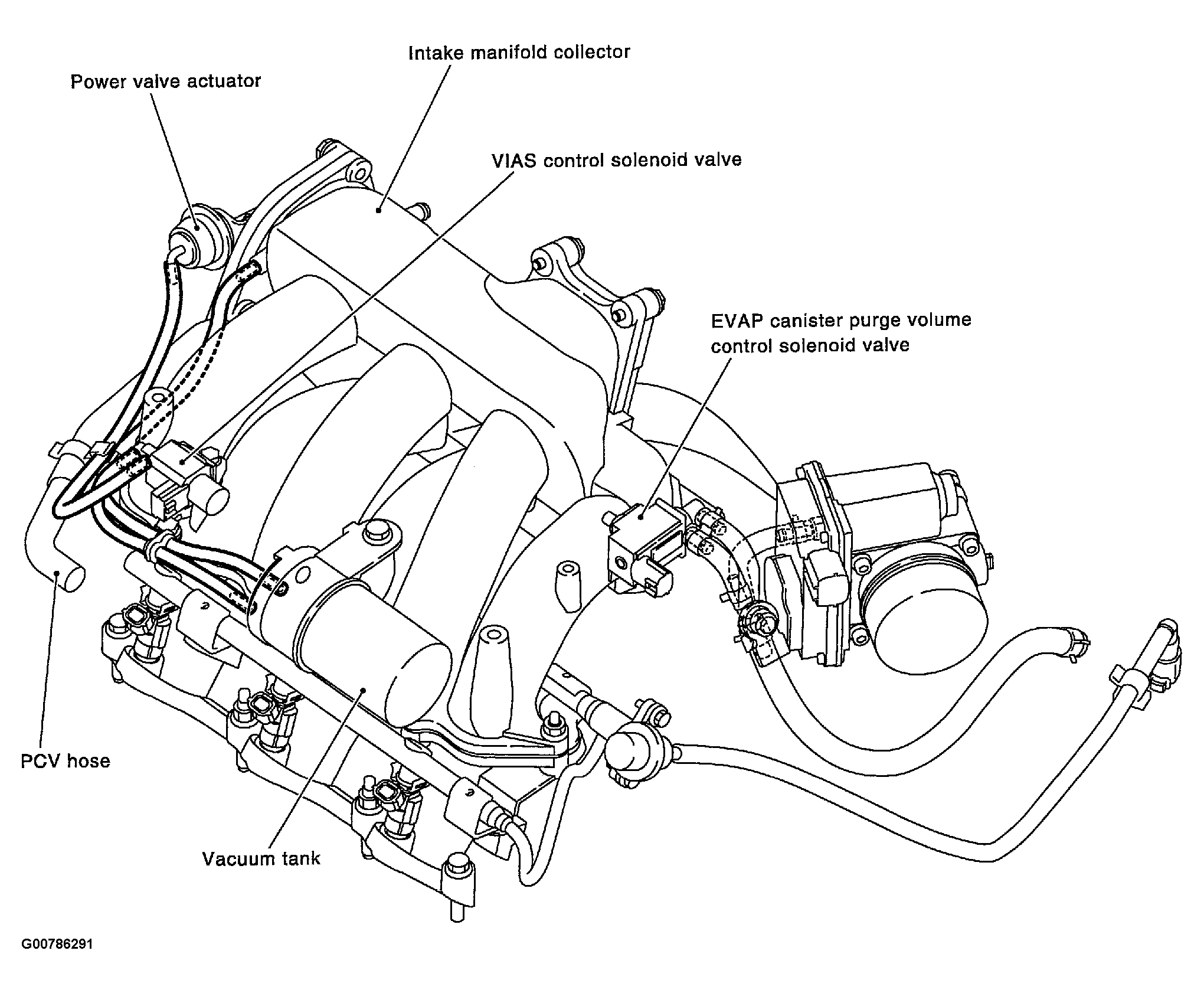

Fig 1: Identifying Vacuum Control System Components

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hose.
