Active Test Mode

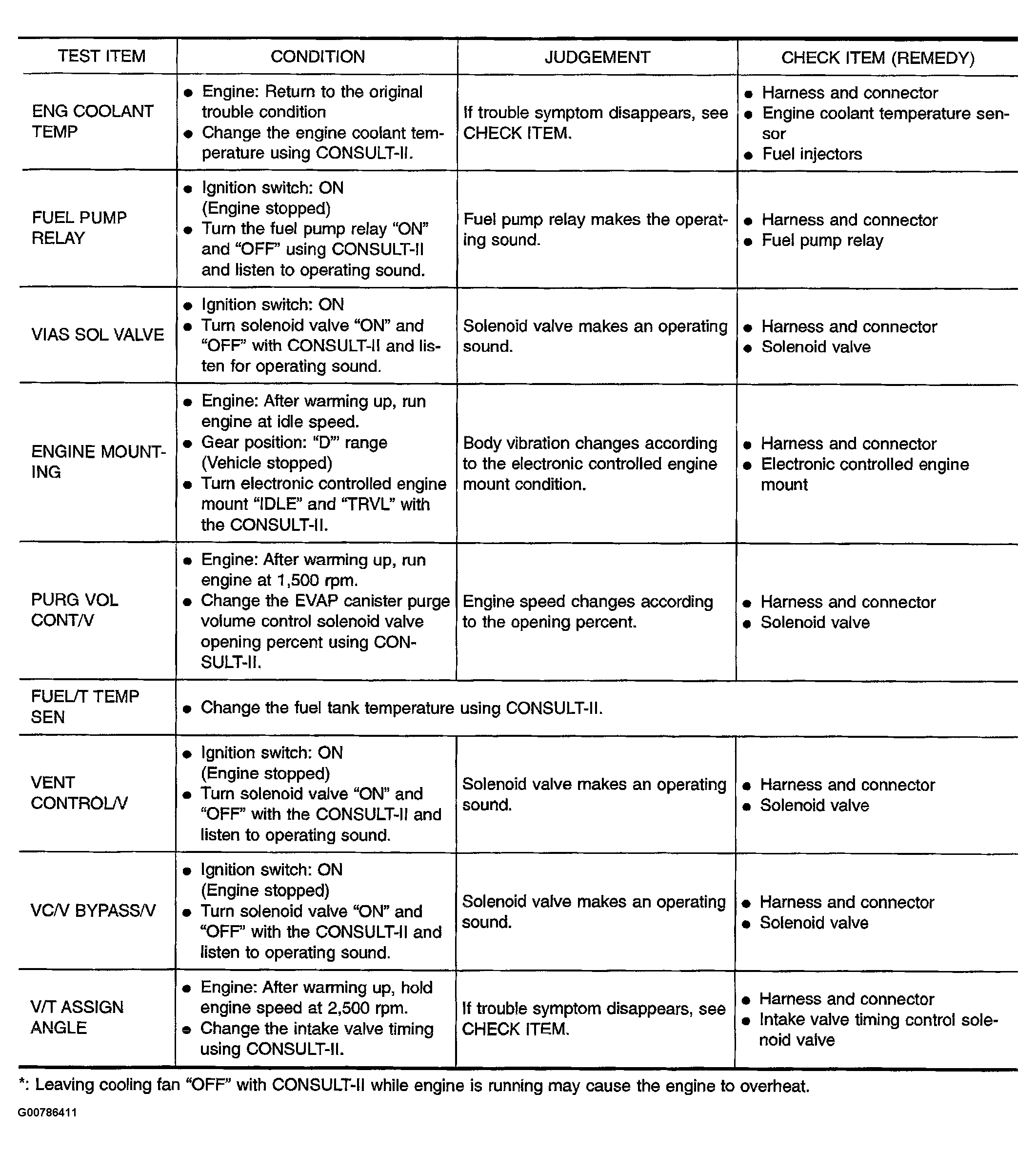

Fig 1: ACTIVE TEST MODE Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: ACTIVE TEST MODE Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
