Trouble Diagnosis - Introduction
›
Work Flow
›
Description For Work Flow
Description For Work Flow

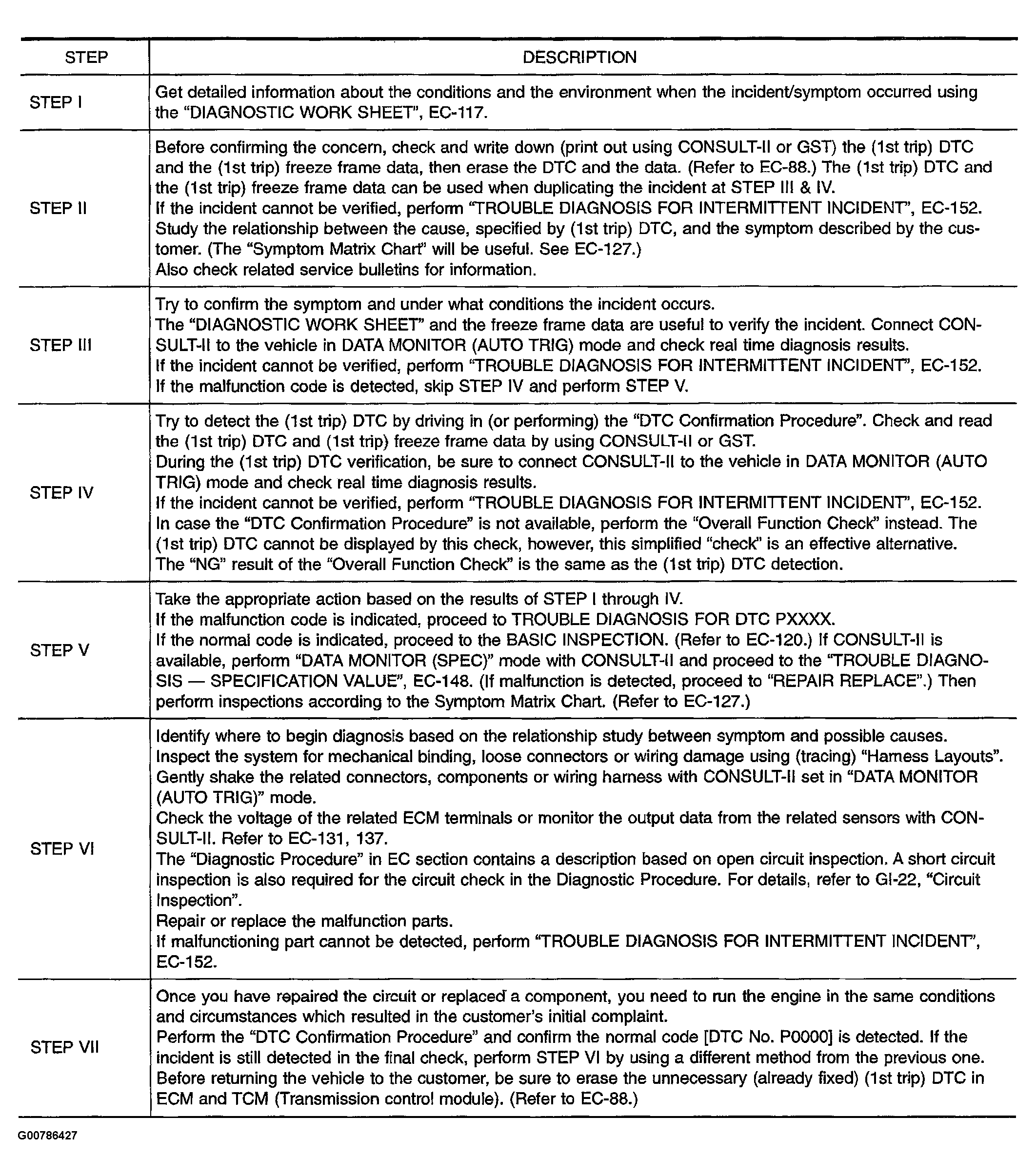

Fig 1: Trouble Diagnosis Description For Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
