Trouble Diagnosis - Specification Value
›
Diagnostic Procedure
Diagnostic Procedure

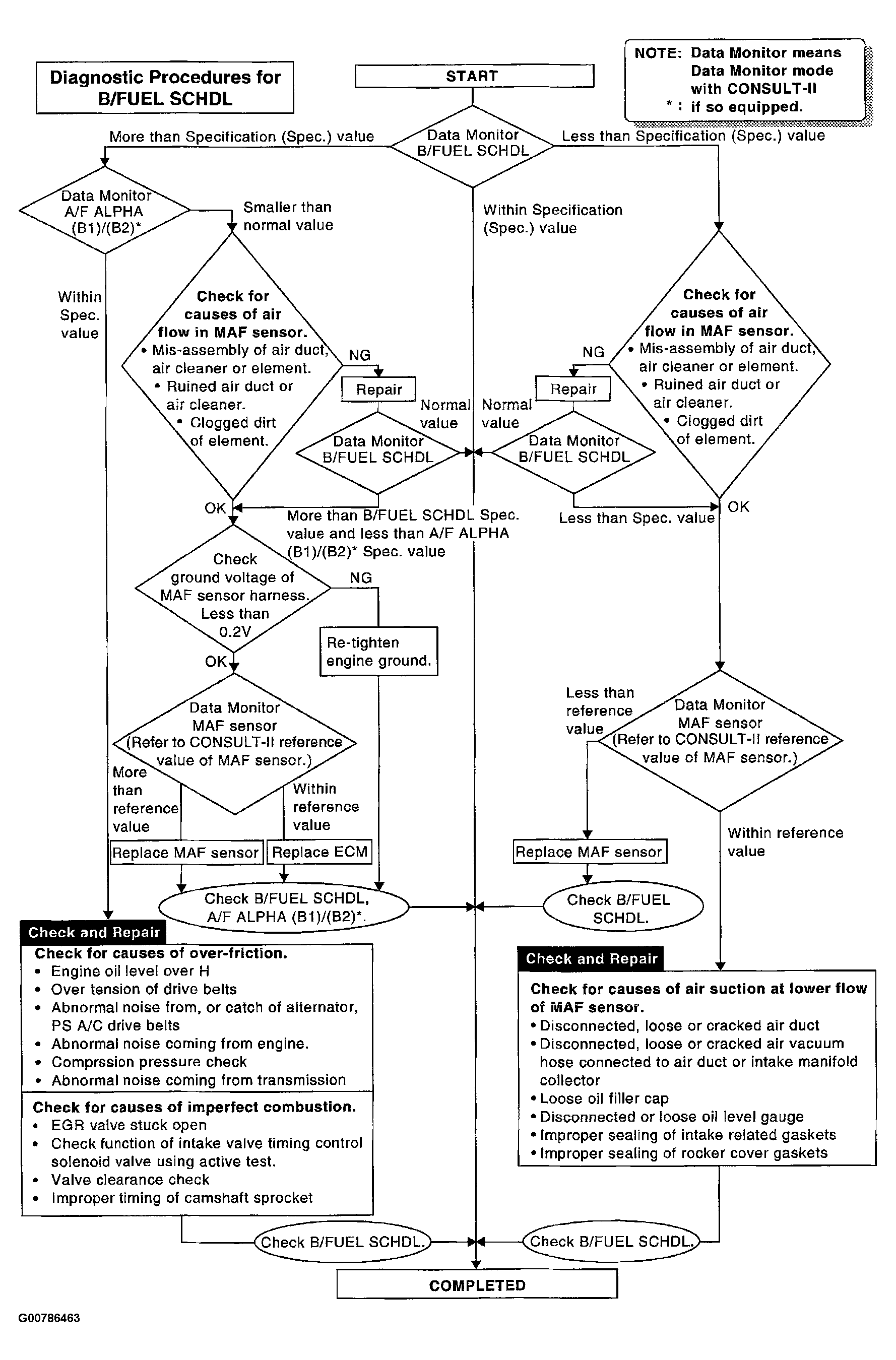

Fig 1: Displaying Diagnostic Procedure Flow Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

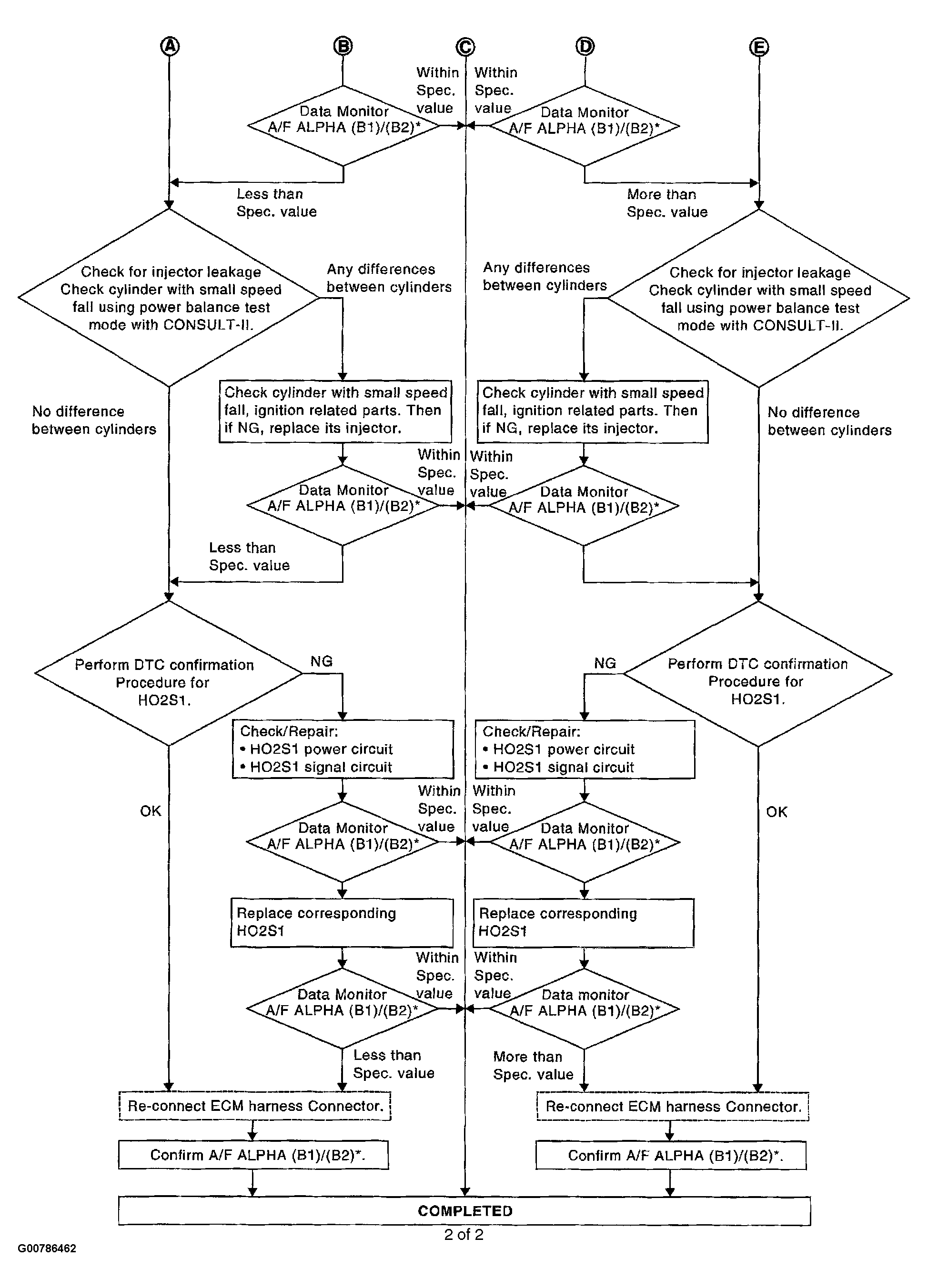

Fig 2: Displaying Diagnostic Procedure Flow Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

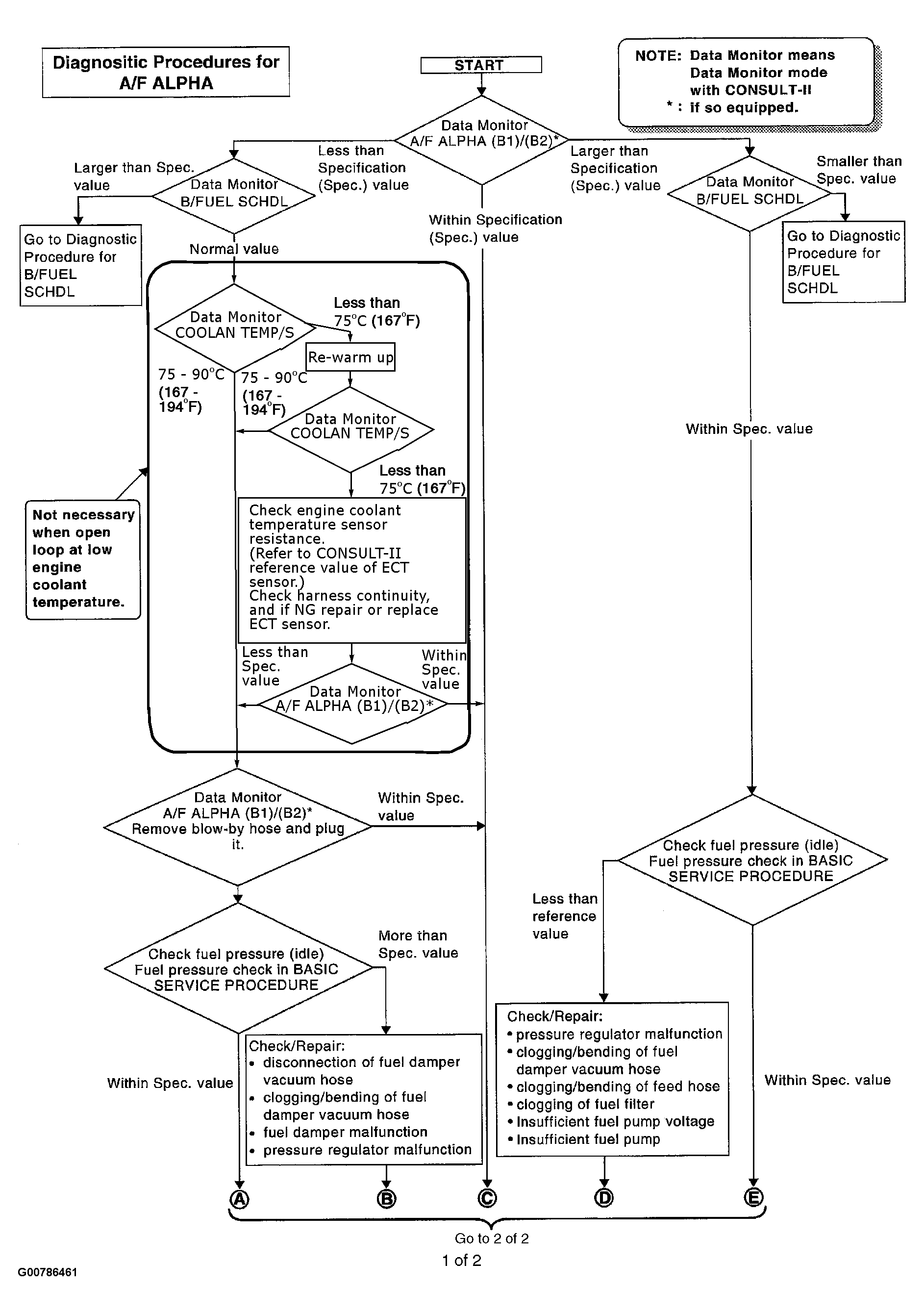

Fig 3: Displaying Diagnostic Procedure Flow Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
