Overview Of Control System
WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
The control system consists of input sensors, switches, the automatic amplifier (microcomputer) and outputs.

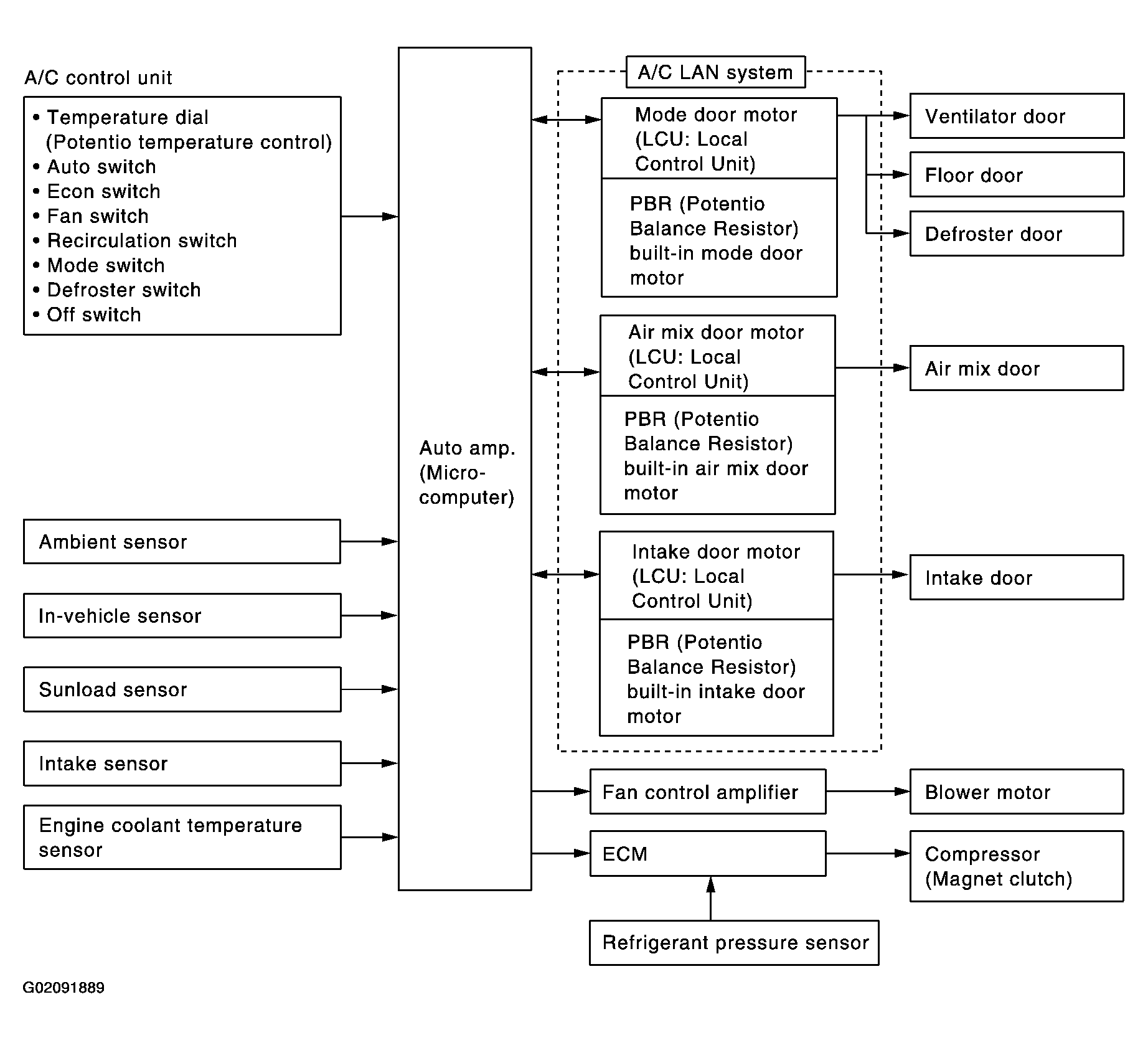

The relationship of these components is shown in the diagram below:
Courtesy of NISSAN MOTOR CO., U.S.A.
