DTC Batt/Fluid Temp Sen (A/T Fluid Temp Sensor Circuit And ICM Power Source: Description: Notes

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

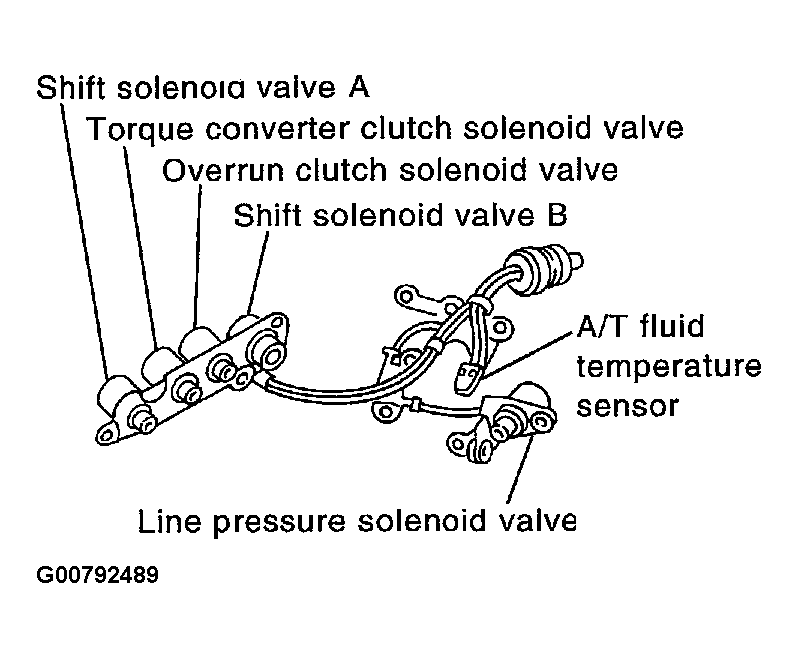

Fig 1: Identifying DTC Batt/Fluid Temp Sen

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Batt/Fluid Temp Sen Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
