On Board Diagnostic System Description
›
Consult-II
›
DTC Work Support Mode
DTC Work Support Mode

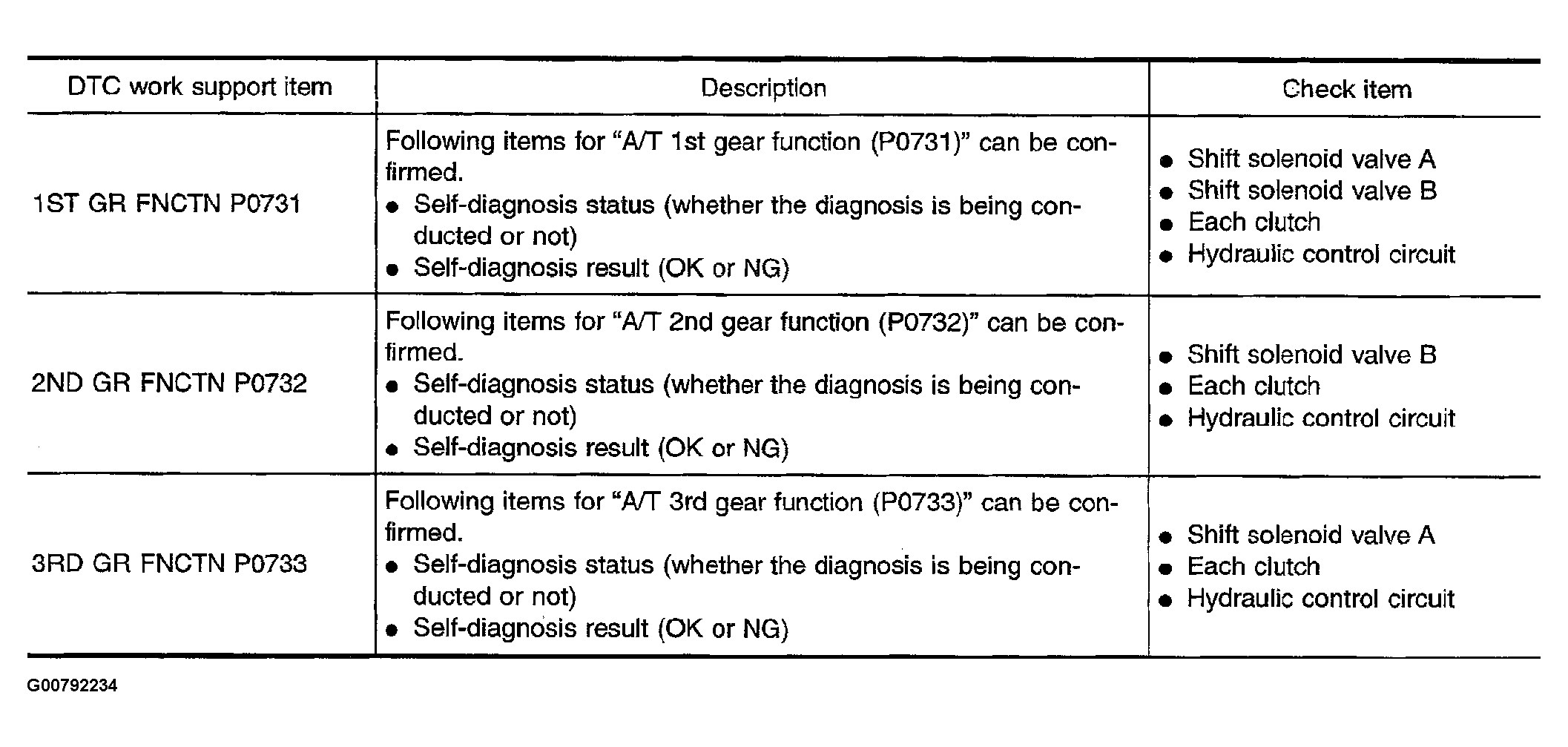

Fig 1: DTC Work Support Mode Item Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

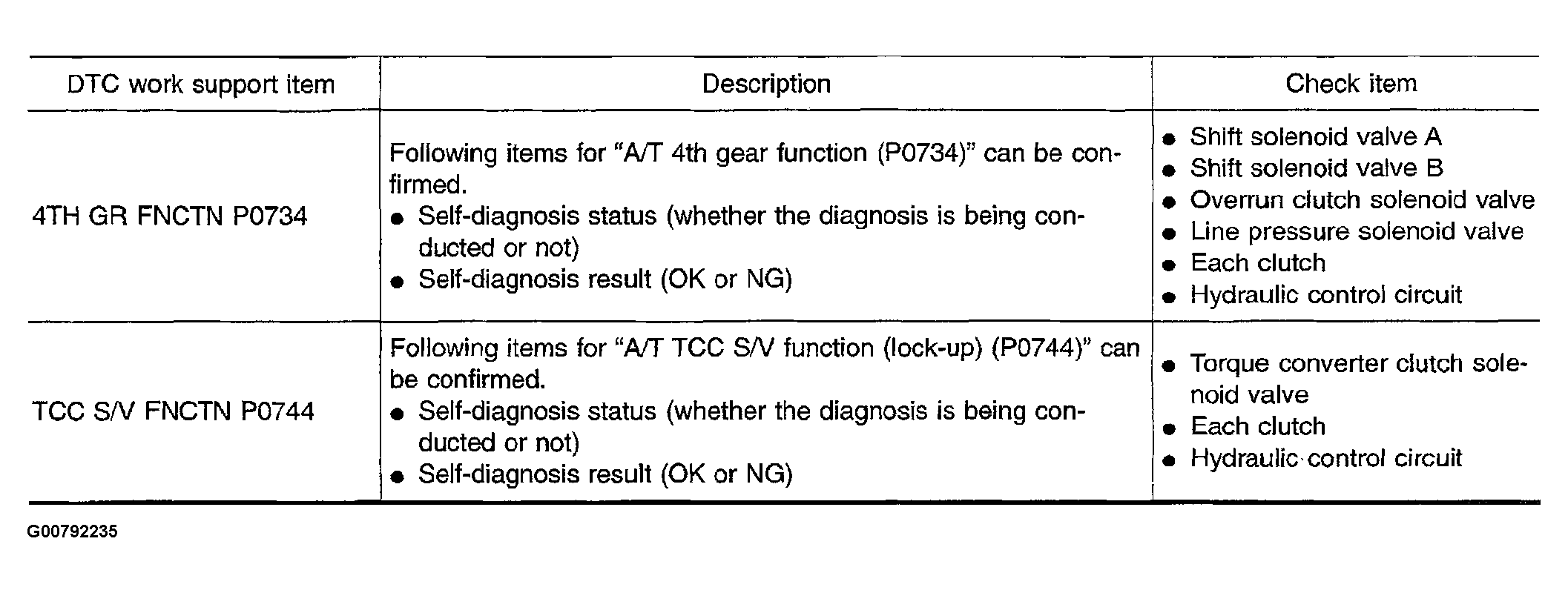

Fig 2: DTC Work Support Mode Item Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
