Control Valve Assembly and Accumulators: Installation

Set manual shaft in Neutral, then align manual plate with groove in manual valve.
After installing control valve assembly, make sure that selector lever can be moved to all positions.

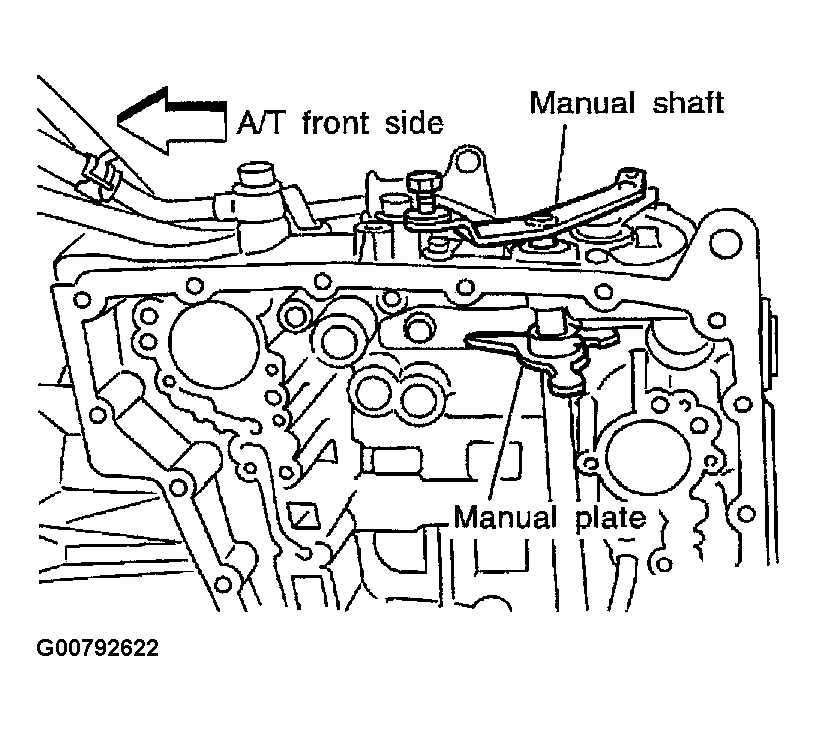

Fig 1: Aligning Manual Plate With Groove In Manual Valve By Setting Manual Shaft In Neutral

Courtesy of NISSAN MOTOR CO., U.S.A.
