Overall System
›
Circuit Diagram
Circuit Diagram

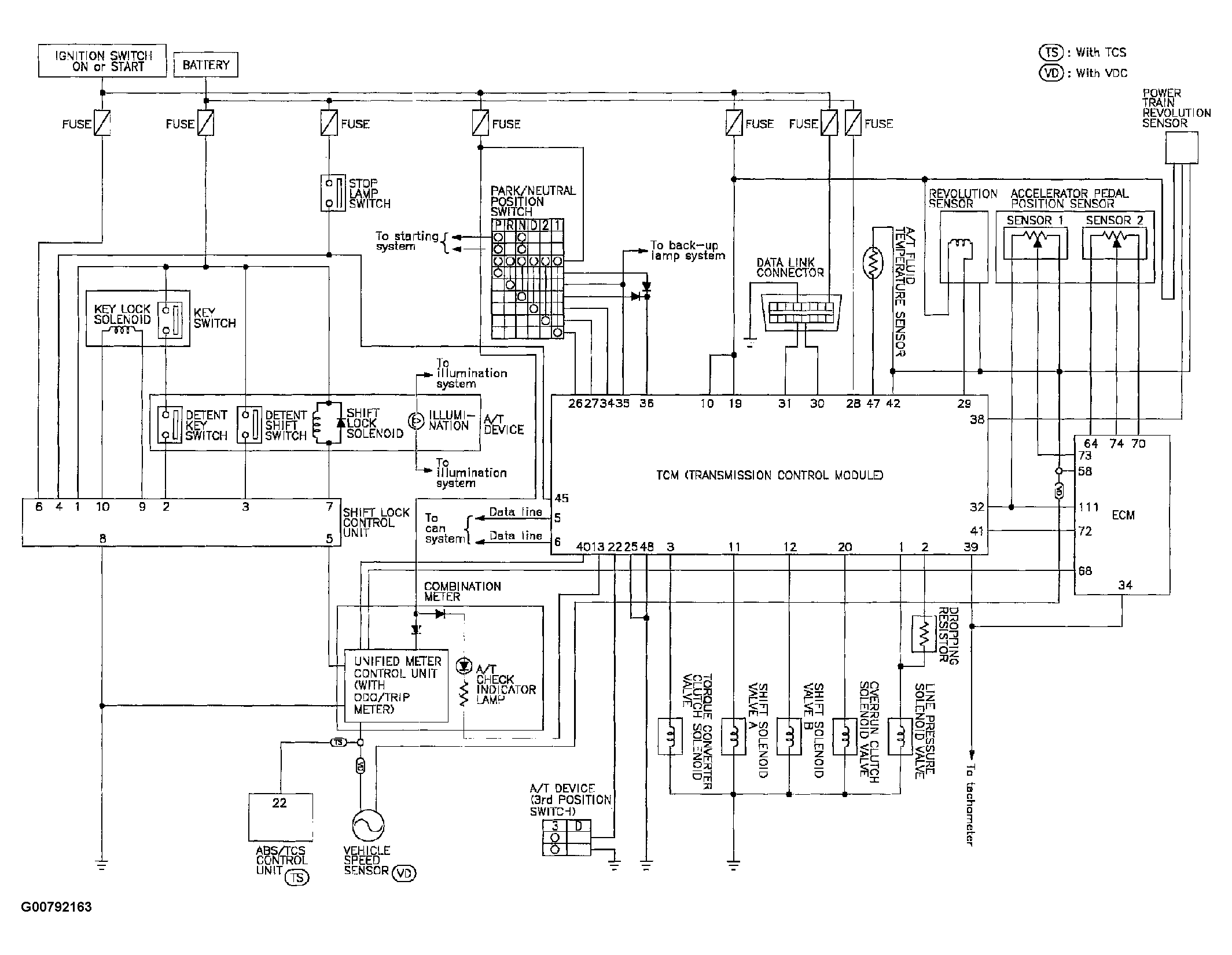

Fig 1: Circuit Diagram Overall System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
