Home › Infiniti › 2004 › I35 › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › Repair For Component Parts › Oil Pump › Components

Oil Pump: Components

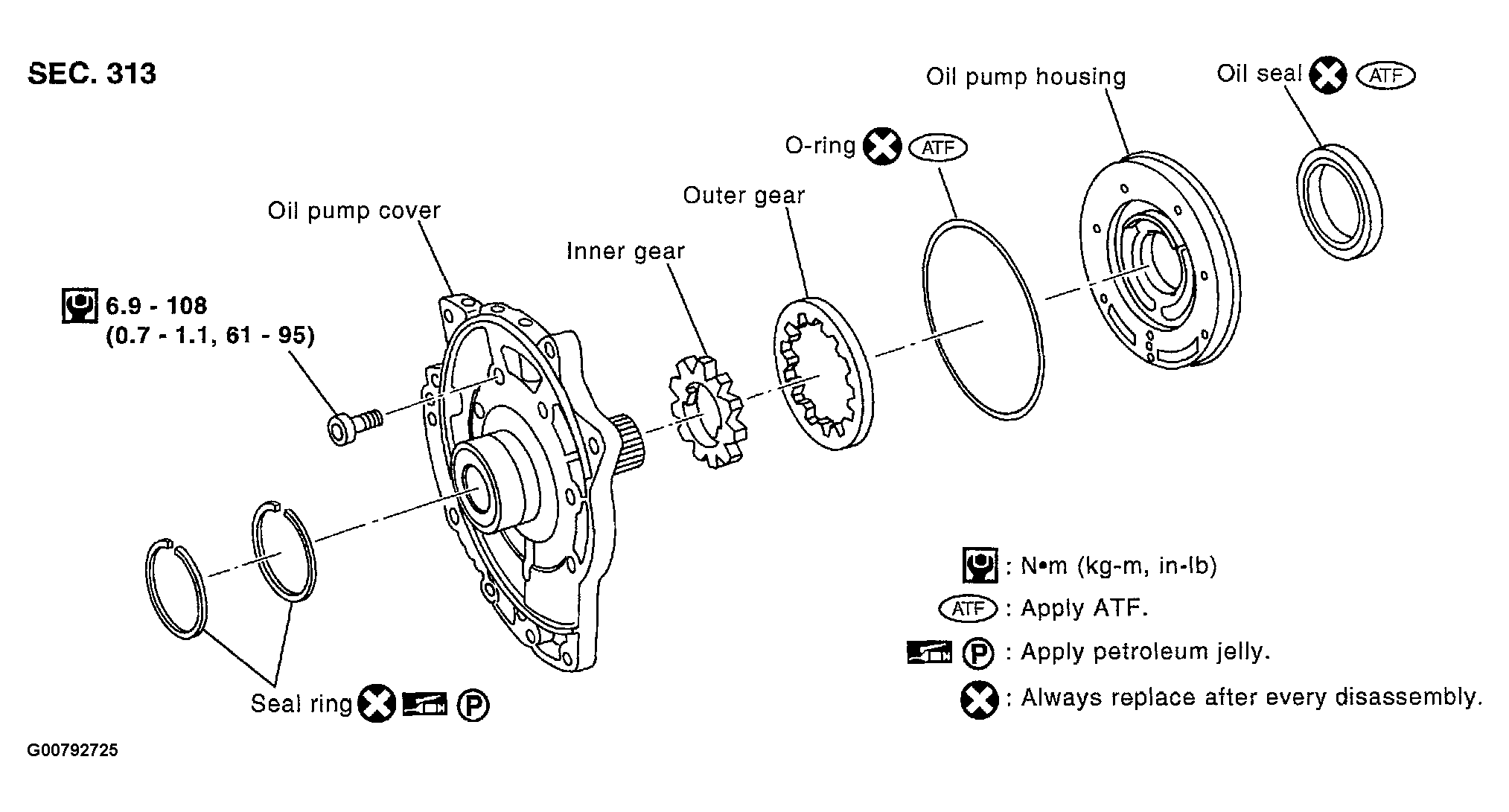

Fig 1: Exploded View Of Oil Pump Components And Torque Specification
G00792725Courtesy of NISSAN MOTOR CO., U.S.A.
