ICC Steering Switch

  1. Disconnect ICC steering switch.
  2. Check resistance between ICC steering switch terminals 1 and 2 by depressing each switch.

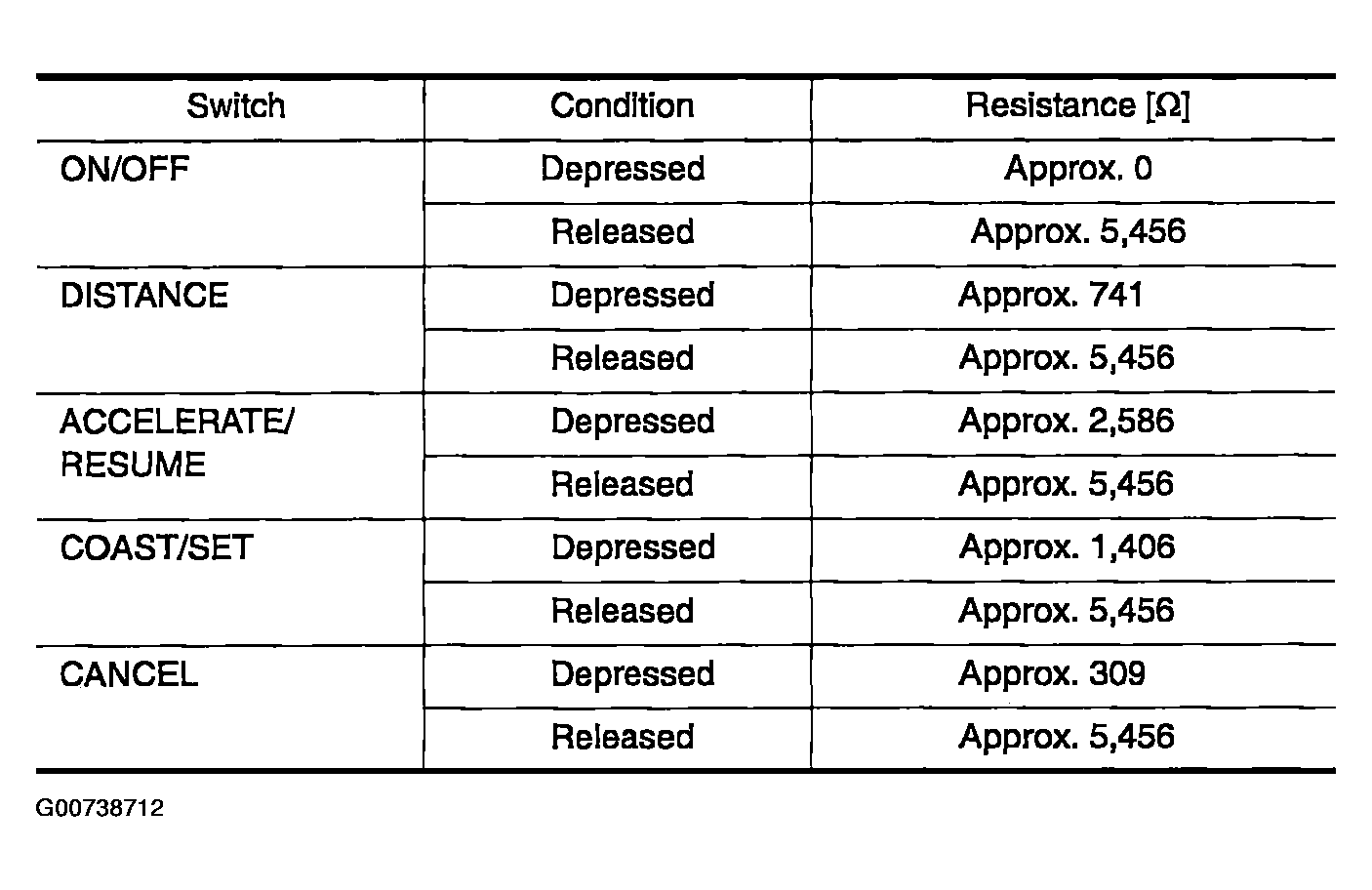

Fig 1: ICC Steering Switch Operation Chart
G00738712Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Check Resistance Between ICC Steering Switch Terminals
G00738713Courtesy of NISSAN MOTOR CO., U.S.A.
