Intelligent Cruise Control System
›
Terminals And Reference Value
›
Terminals And Reference Value For ICC Radar Sensor
Terminals And Reference Value For ICC Radar Sensor

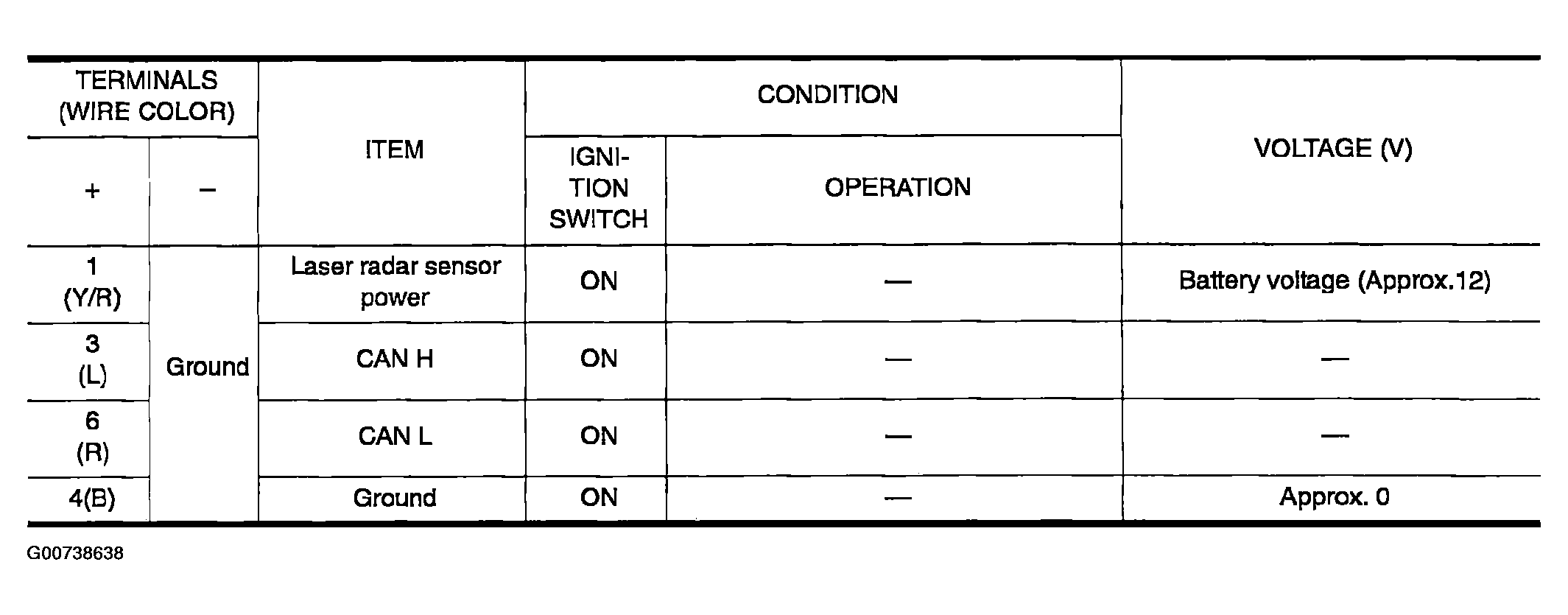

Fig 1: Terminals & Reference Value For ICC Radar Sensor Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
