Terminals And Reference Value For ICC Unit

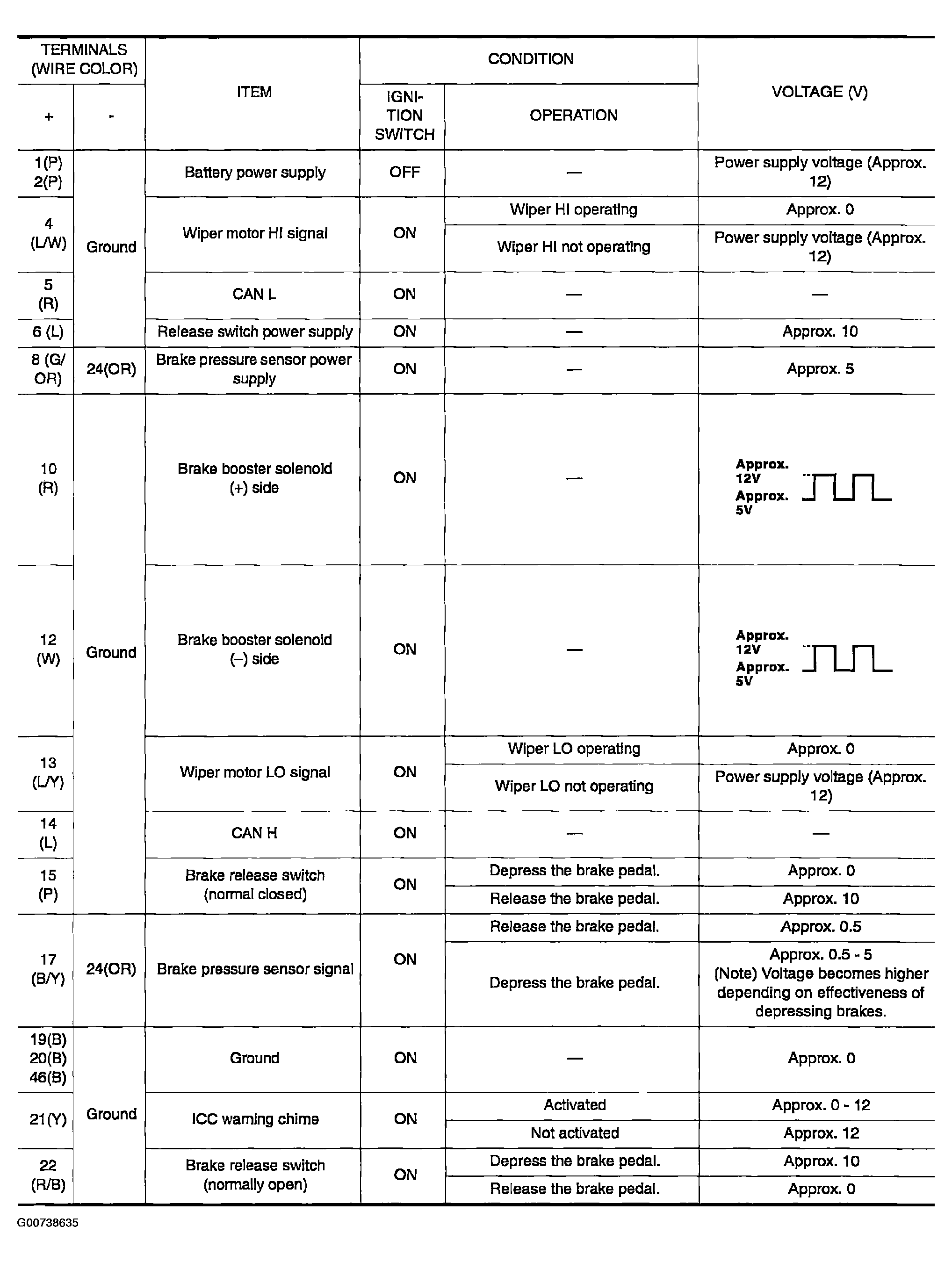

Fig 1: Terminals & Reference Value For ICC Unit Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

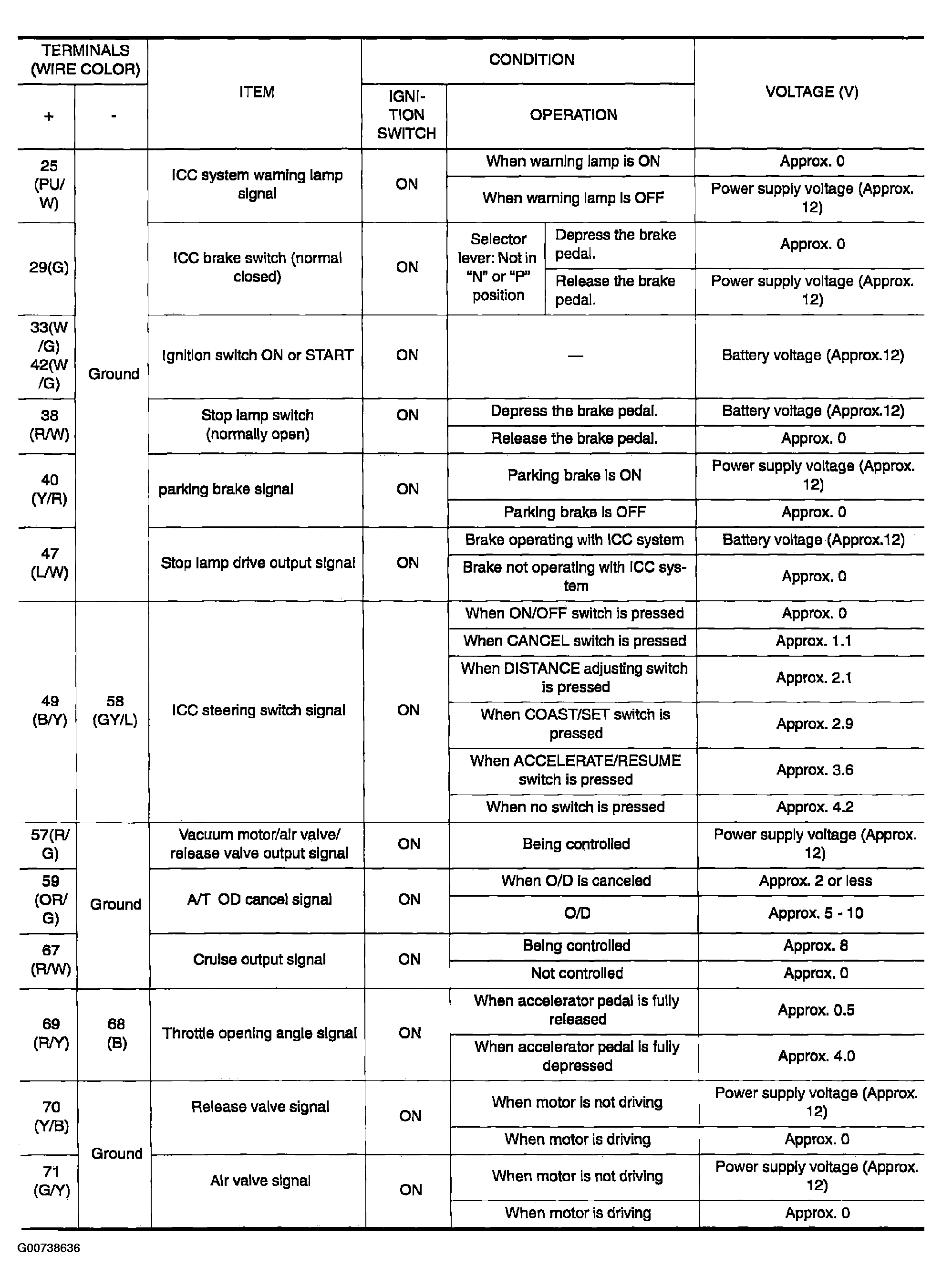

Fig 2: Terminals & Reference Value For ICC Unit Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

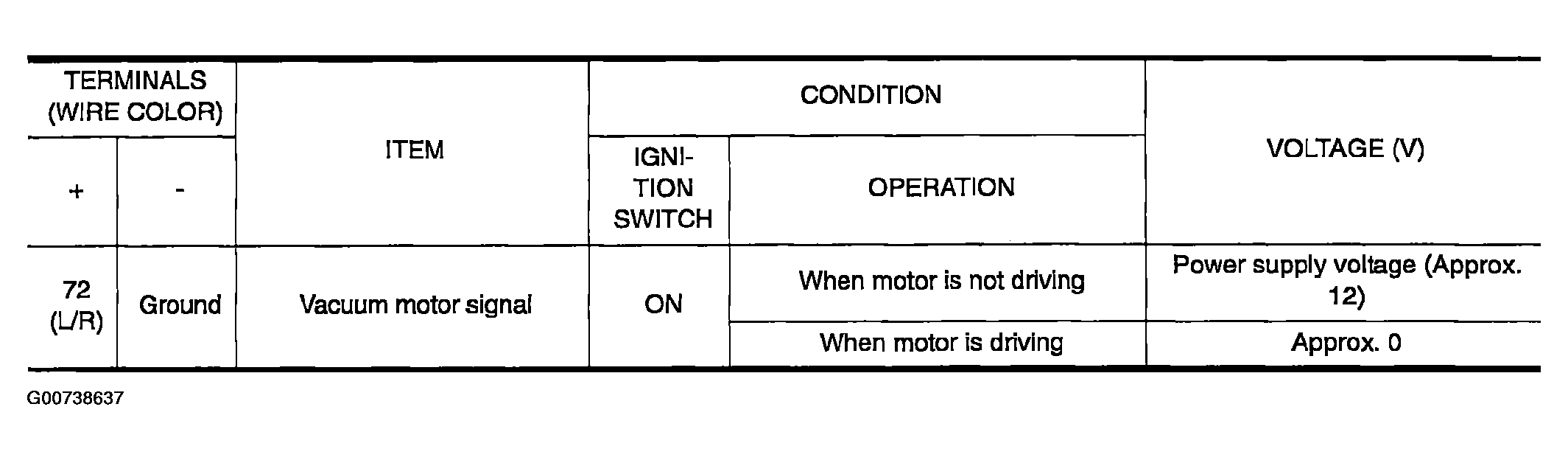

Fig 3: Terminals & Reference Value For ICC Unit Chart (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
