Removal And Installation: Removal

  1. Remove center console. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G-sensor.

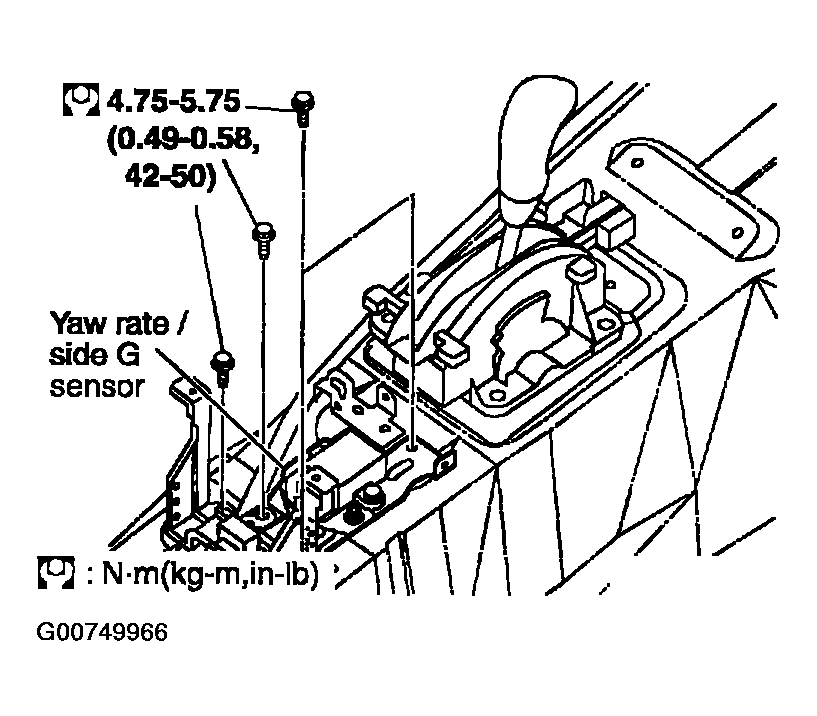

    Fig 1: Removing & Installing G-Sensor
    G00749966Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.
