Removal And Installation: Removal

  1. Remove spiral cable assembly. Refer to SPIRAL CABLE .
  2. Remove steering angle sensor from spiral cable assembly.

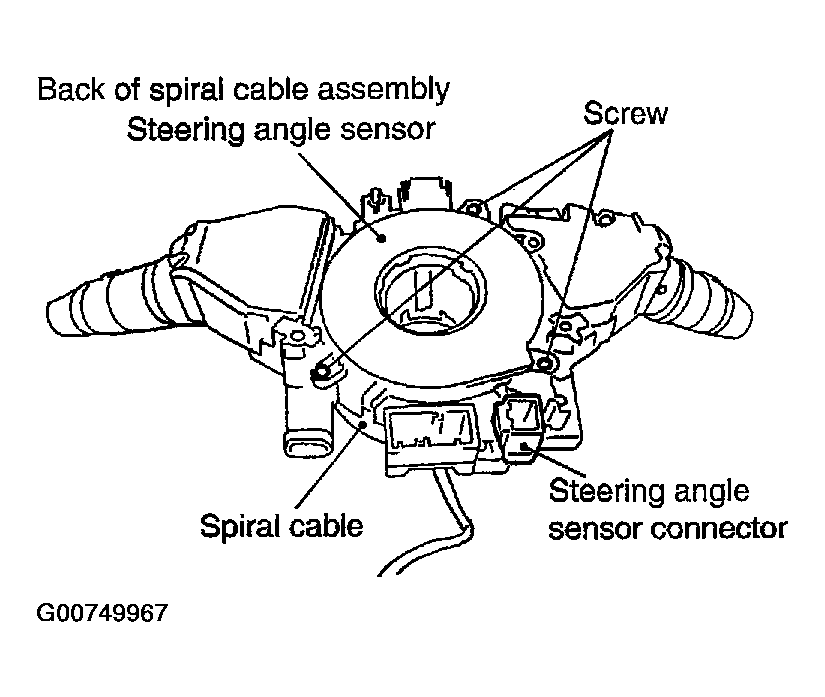

    Fig 1: Removing & Installing Spiral Cable
    G00749967Courtesy of NISSAN MOTOR CO., U.S.A.
