ASCD Output

Touch "ON" and "OFF" on the screen. Make sure that ASCD output is as shown in Fig 2

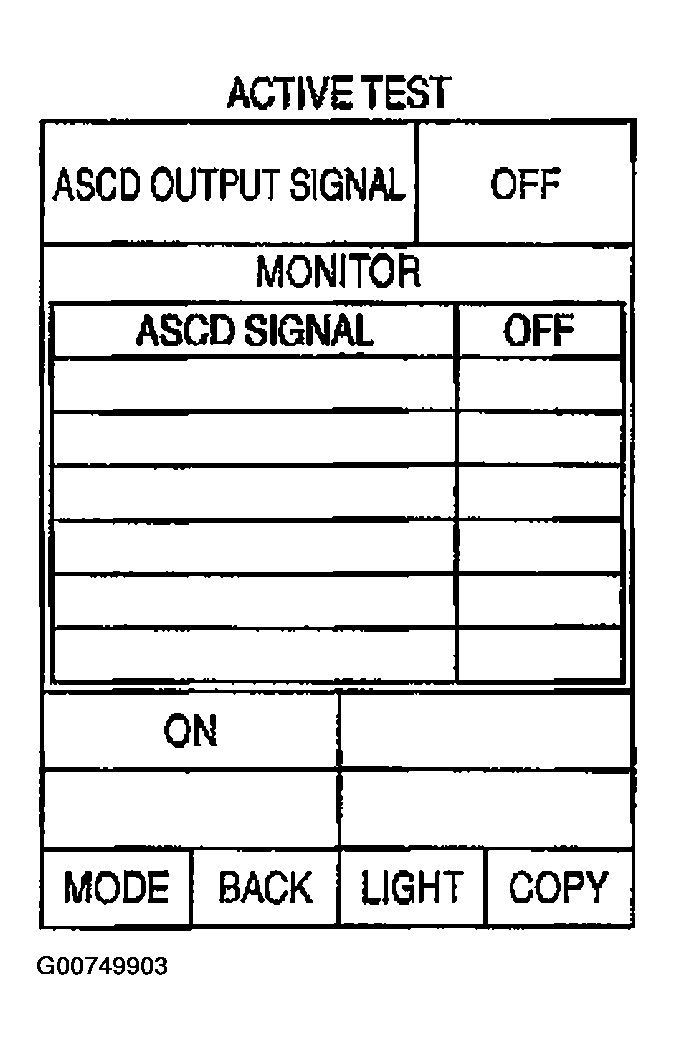

Fig 1: Viewing ASCD OUTPUT SIGNAL Function On Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Defining ASCD OUTPUT SIGNAL Test Results
Courtesy of NISSAN MOTOR CO., U.S.A.
