VDC Relay Box

Disconnect VDC relay box harness connector E55, E56 and E57. Check continuity, resistance value, and insulation between any pair of terminals in the VDC relay box.

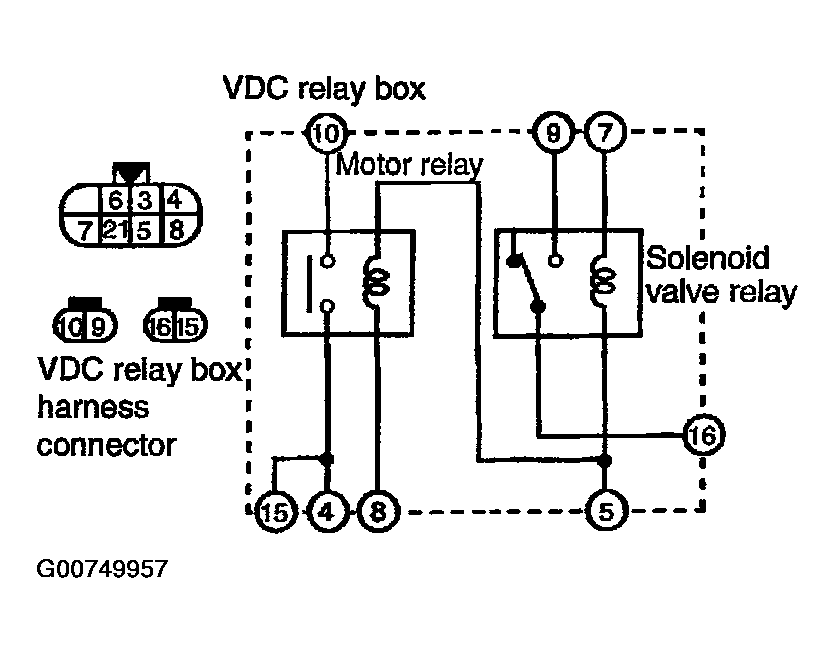

Fig 1: Identifying VDC Relay Box Circuit Components

Courtesy of NISSAN MOTOR CO., U.S.A.
