Vehicle Information And Integrated Switch System /With Navigation System
›
Terminals and Reference Value for Multifunction Switch
Terminals and Reference Value for Multifunction Switch

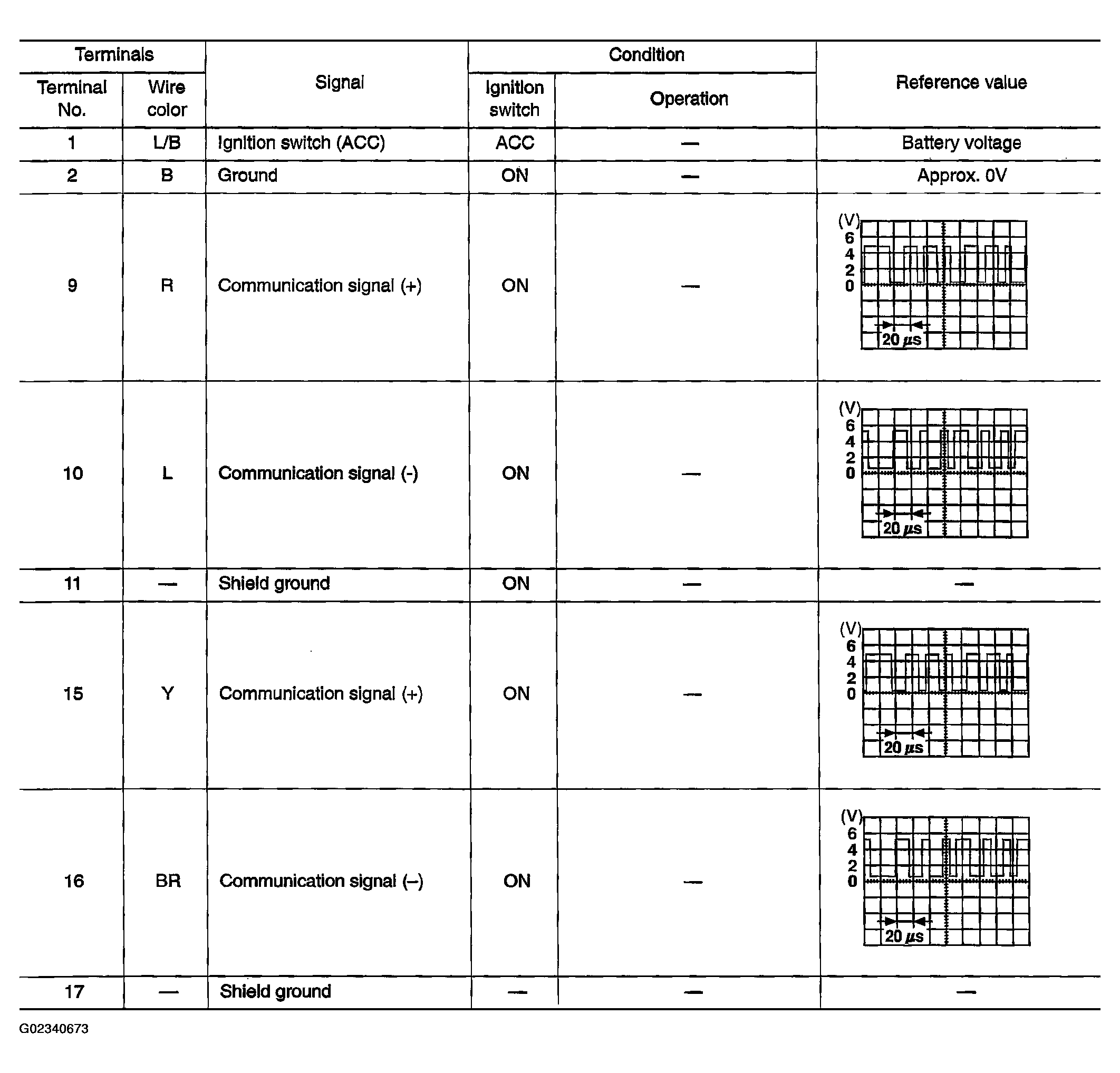

Fig 1: Terminals & Reference Value Chart For Multifunction Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
