Vehicle Information And Integrated Switch System/Without Navigation System: Schematic

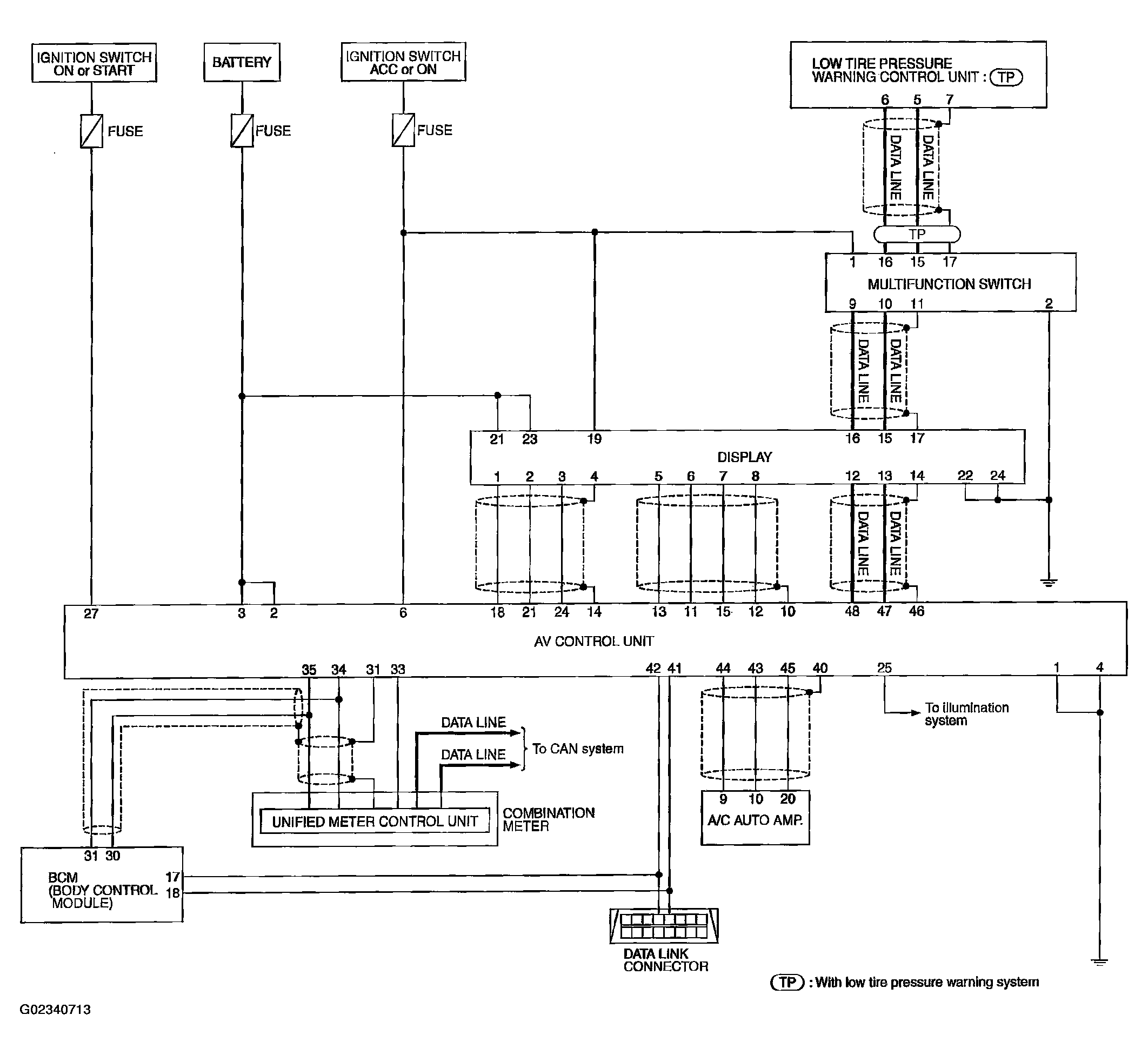

Fig 1: Schematic Diagram Of Vehicle Information And Integrated Switch System/Without Navigation System
Courtesy of NISSAN MOTOR CO., U.S.A.
