Removal And Installation: Installation
- Install oil pump.
- Install oil pump drive spacer as follows.

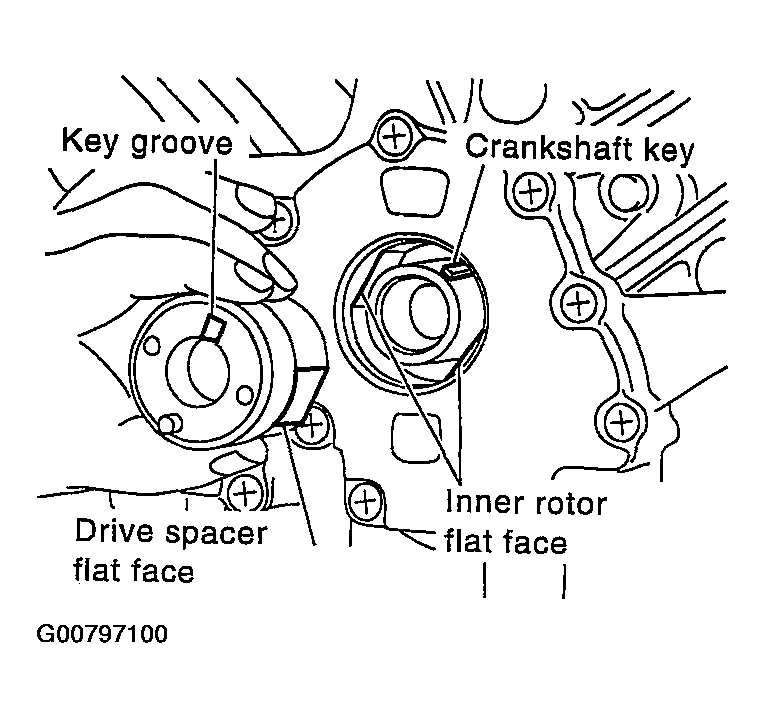

- When inserting oil pump drive spacer, align the crankshaft key and the flat face of inner rotor.
- If they are not aligned, rotate inner rotor by hand.
- Make sure that the each part is aligned. Using a tool such as a plastic hammer, tap lightly until it reaches the end.
- When inserting oil pump drive spacer, align the crankshaft key and the flat face of inner rotor.
- Install in the reverse order of removal.
