Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Oil Pump
›
Removal And Installation
›
Notes
Removal And Installation: Notes

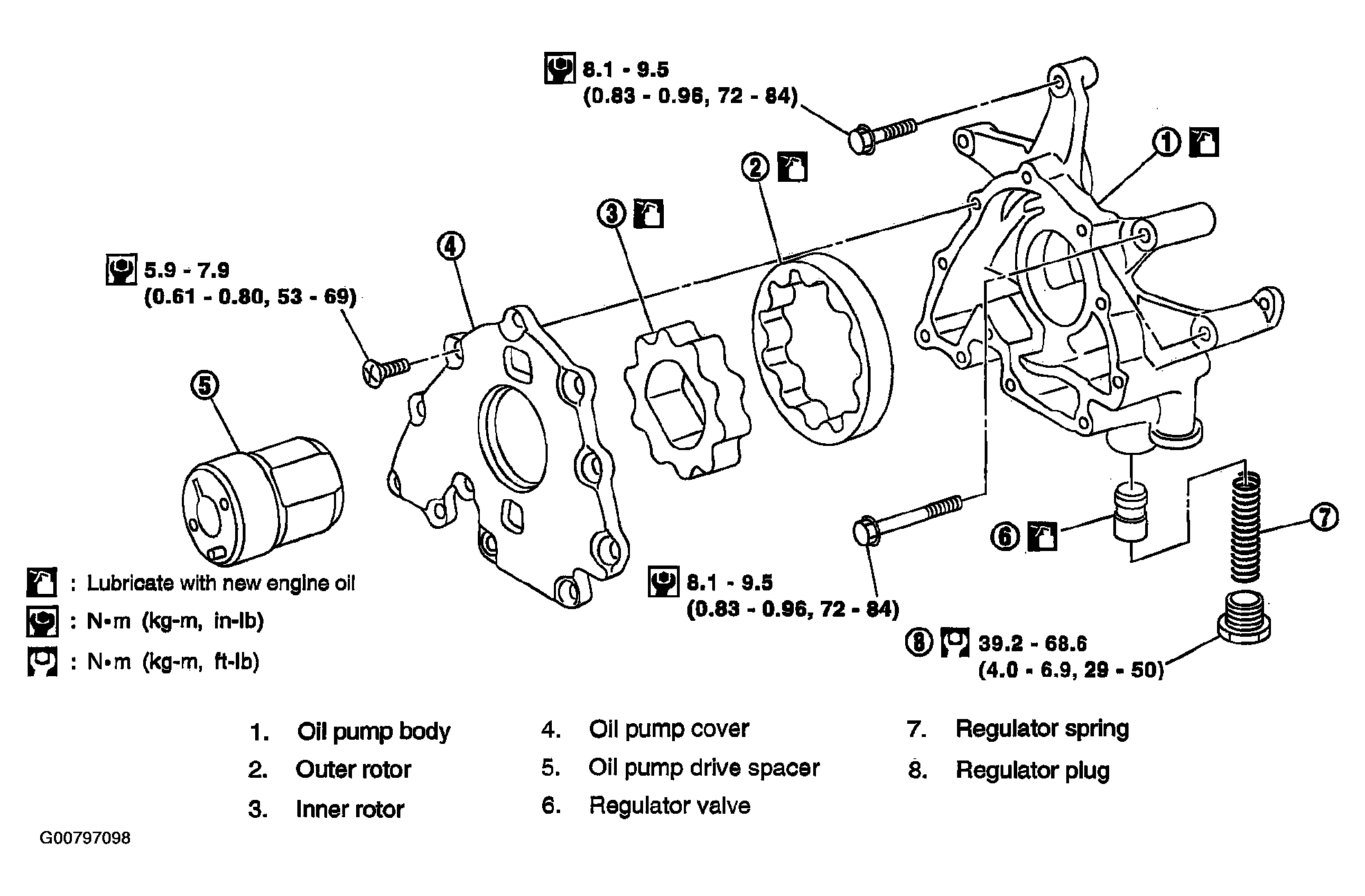

Fig 1: Removing & Installing Oil Pump Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
