Service Data And Specifications (SDS)
›
Standard And Limit
›
Oil Pump
Oil Pump

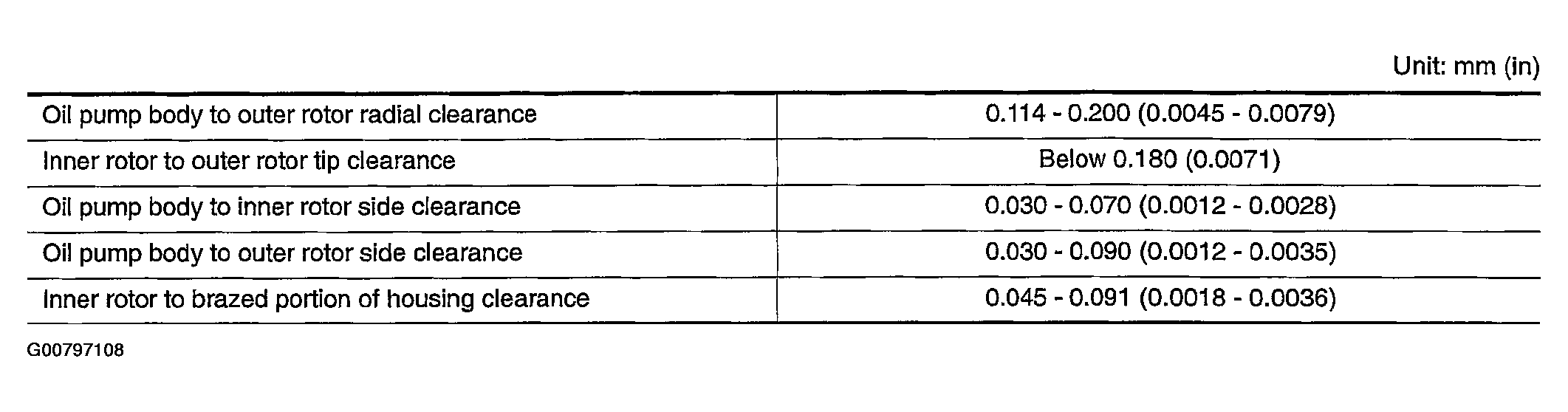

Fig 1: Specifying Clearances Of Oil Pump Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
