FixVault
Home
›
Infiniti
›
2004
›
M45
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Service Data And Specifications (SDS)
›
Tightening Torque
Tightening Torque

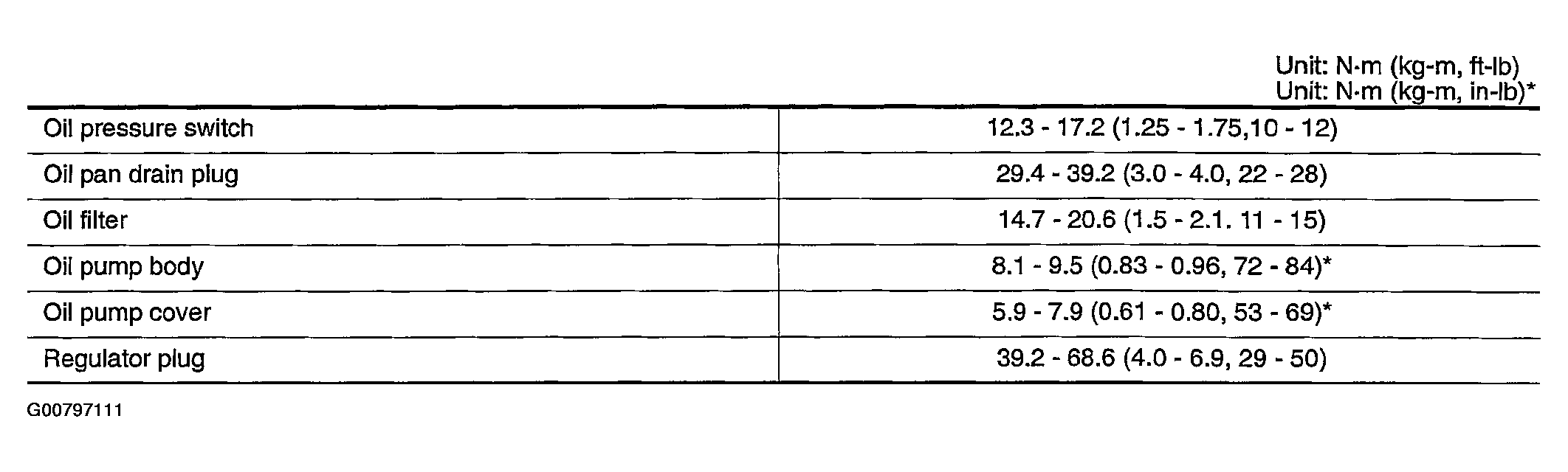

Fig 1: Conveying Torque Specifications For Oil Pump Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
