Terminals And Reference Value For Dual Mode Muffler Control Unit
Terminals And Reference Value For Dual Mode Muffler Control Unit

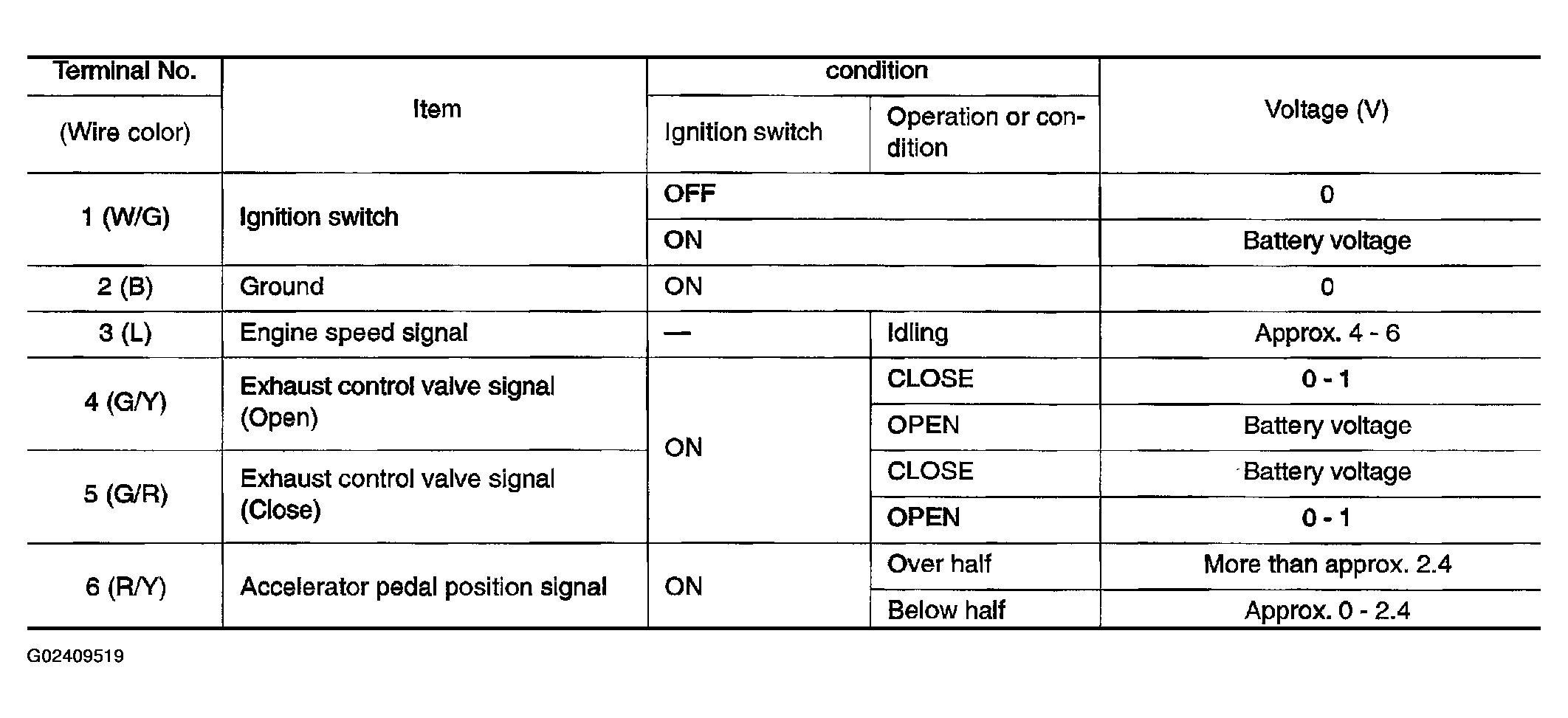

Fig 1: Dual Mode Muffler Control Unit Terminal Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
