On Board Diagnosis Logic: Notes

NOTE: If DTC P0122, P0123 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.

These self-diagnoses have the one trip detection logic.

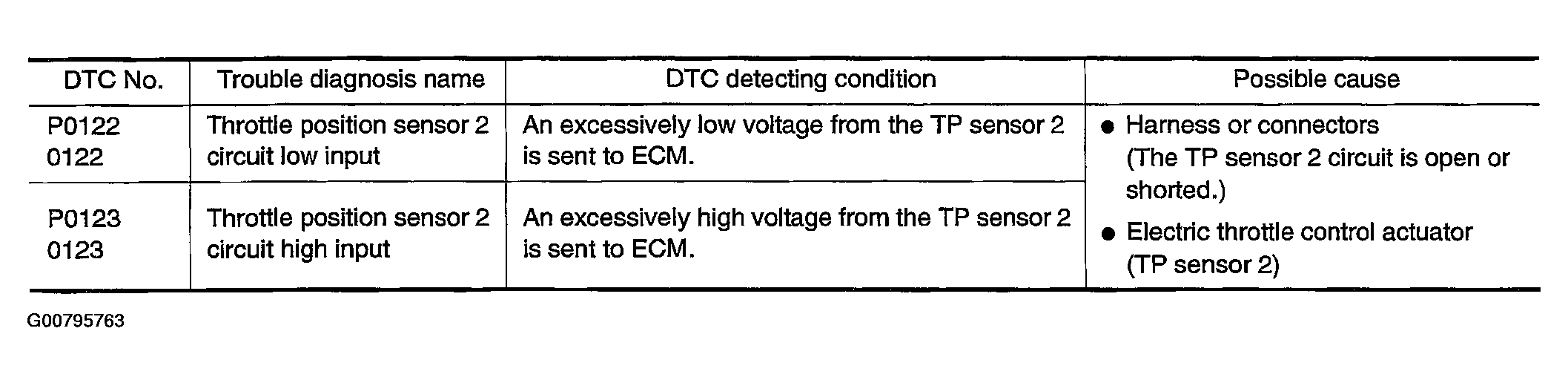

Fig 1: On Board Diagnosis Logic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
