DTC P0171, P0174: Fuel Injection System Function
›
Wiring Diagram
›
Bank 2
Bank 2

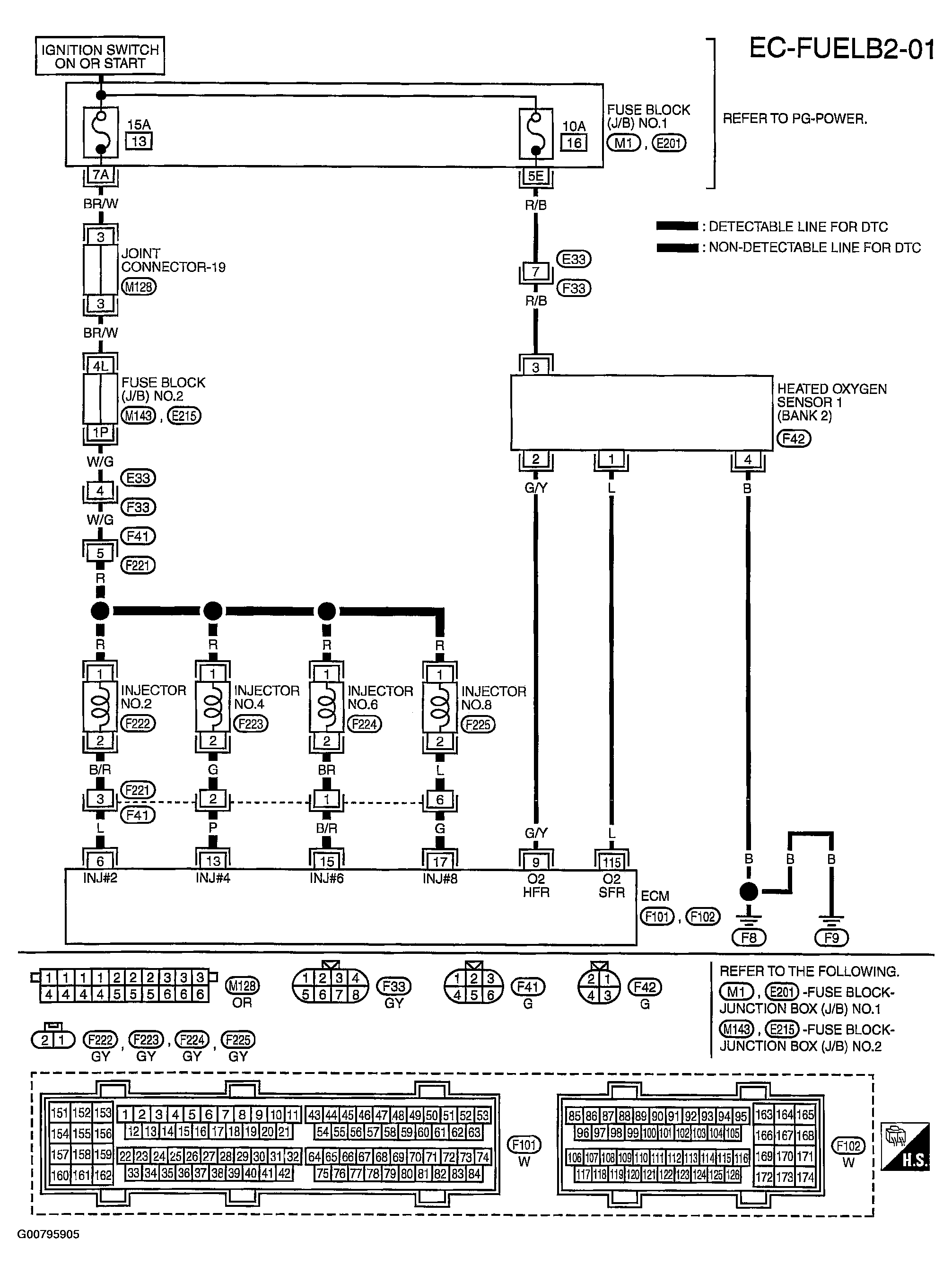

Fig 1: Circuit Diagram - Fuel Injection - Bank 2 - EC-FUELB2-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
