1. Check Mil Power Supply

1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Turn ignition switch ON.
4. Check voltage between combination meter terminals 40, 42 and ground with CONSULT-II or tester

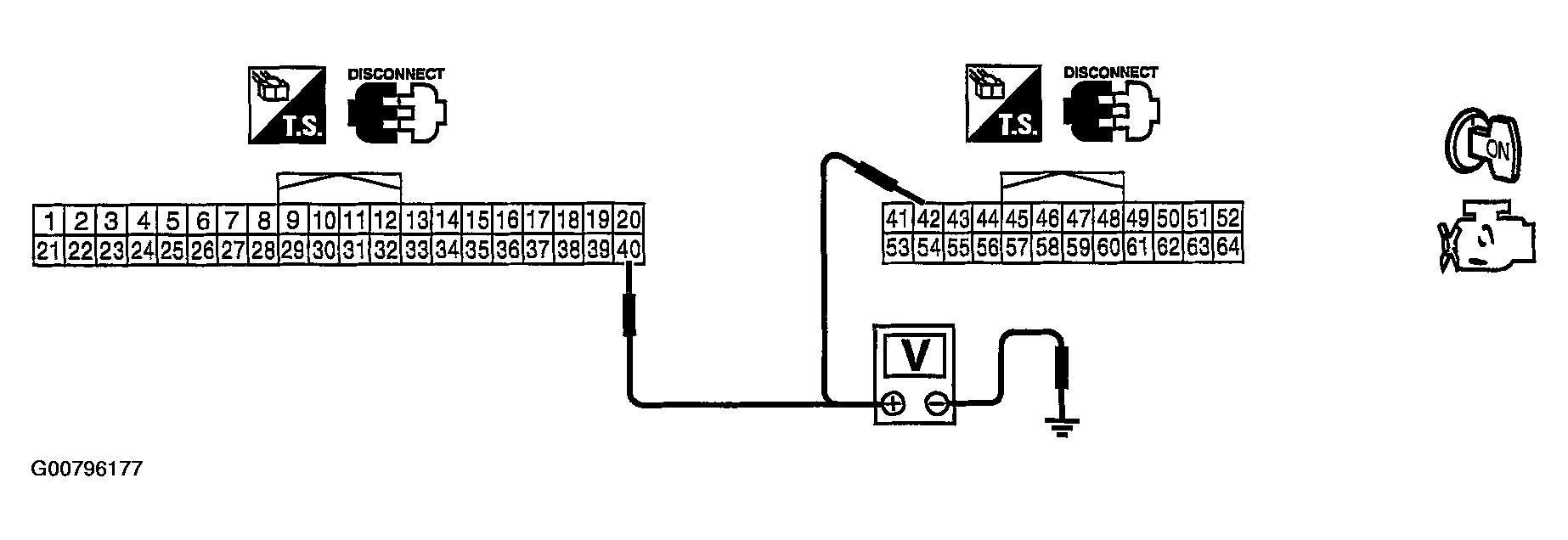

   Fig 1: Checking Voltage Between Combination Meter Terminals 40, 42 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 3. CHECK MIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 2.
