On Board Diagnosis Logic: Notes

NOTE: If DTC P1102 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to DTC P1229 SENSOR POWER SUPPLY .

This self-diagnosis has the one trip detection logic.

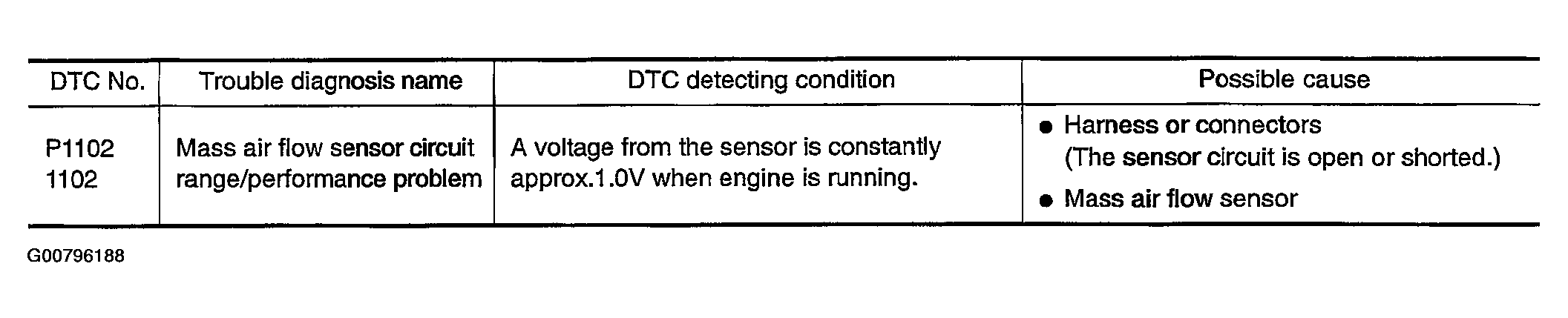

Fig 1: On Board Diagnosis Logic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
