With CONSULT-II

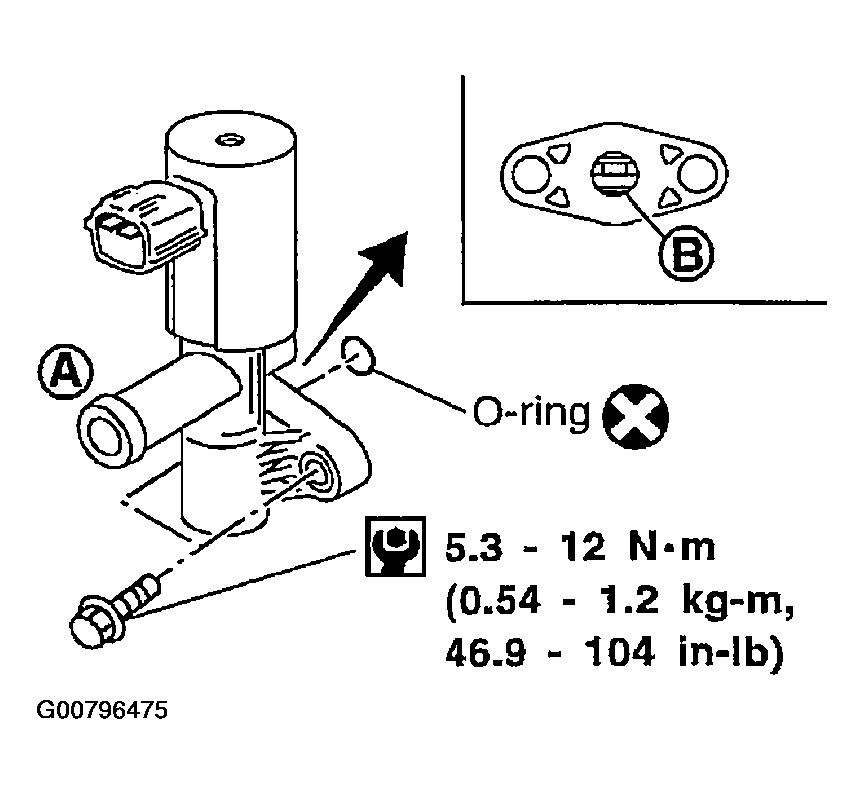

- Remove EVAP canister vent control valve from EVAP canister.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check portion B
of EVAP canister vent control valve for being rusted.
- Reconnect harness connectors disconnected.

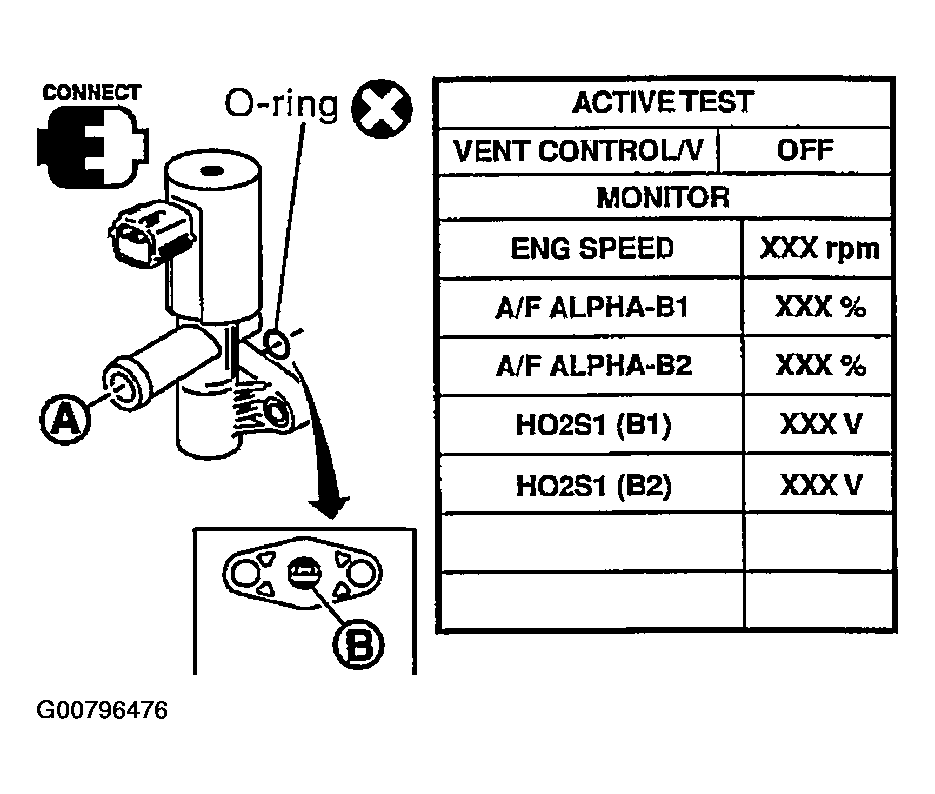

- Turn ignition switch ON.
- Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check air passage continuity and operation delay time.
- Clean the air passage (Portion A
to B
) of EVAP canister vent control valve using an air blower.
- Perform Test No. 9 again.
