DTC P1480: Cooling Fan Speed Control Solenoid Valve: Wiring Diagram

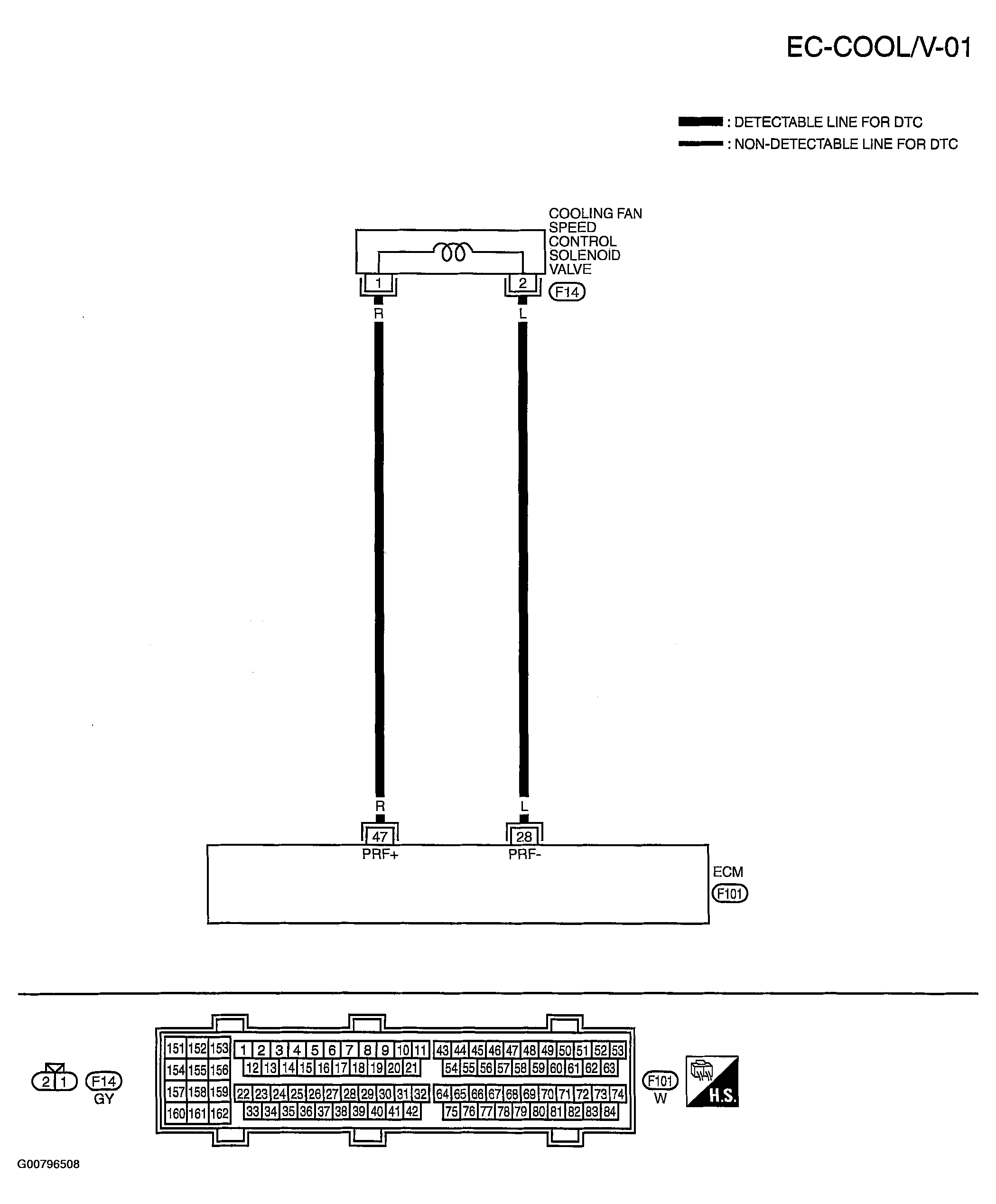

Fig 1: Circuit Diagram - Cooling Fan Speed Control Solenoid Valve - EC-COOL/V-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

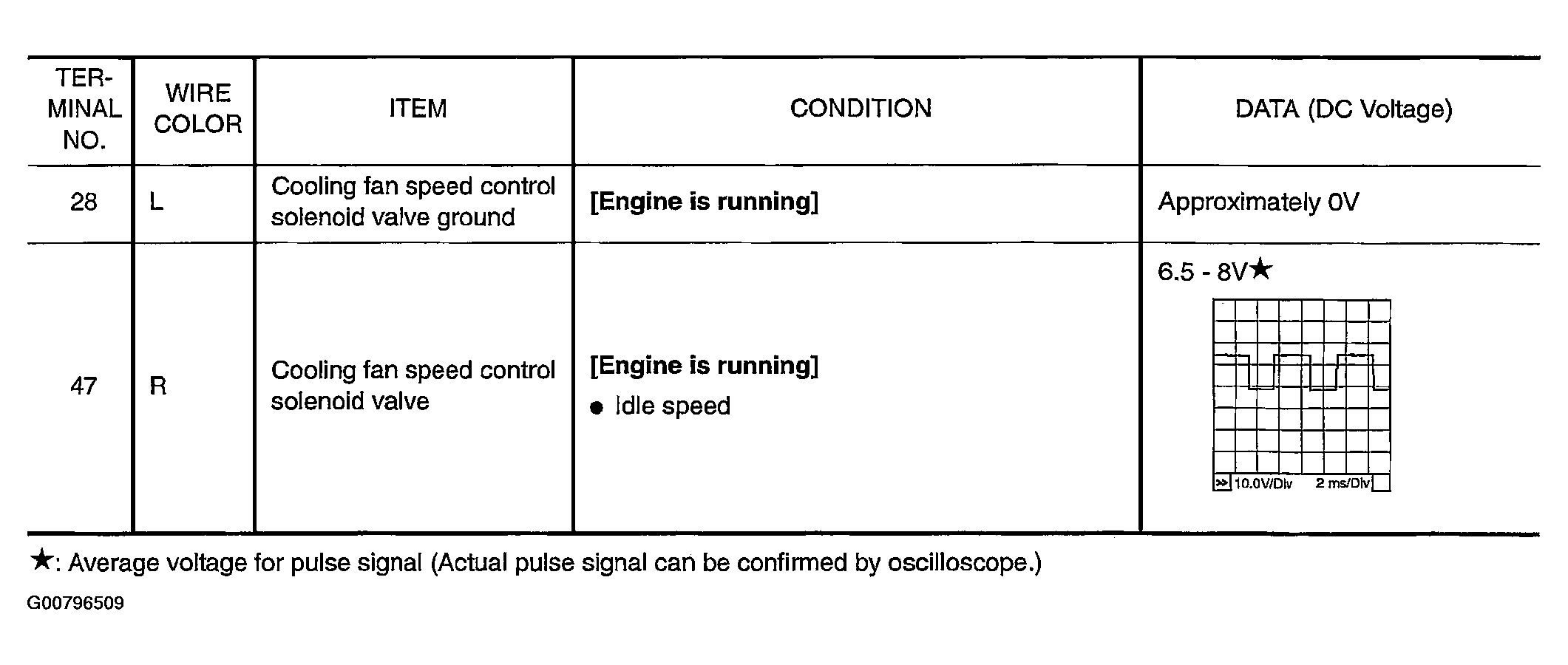

Fig 2: Terminal Testing & Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
