Electrical Load Signal: Wiring Diagram

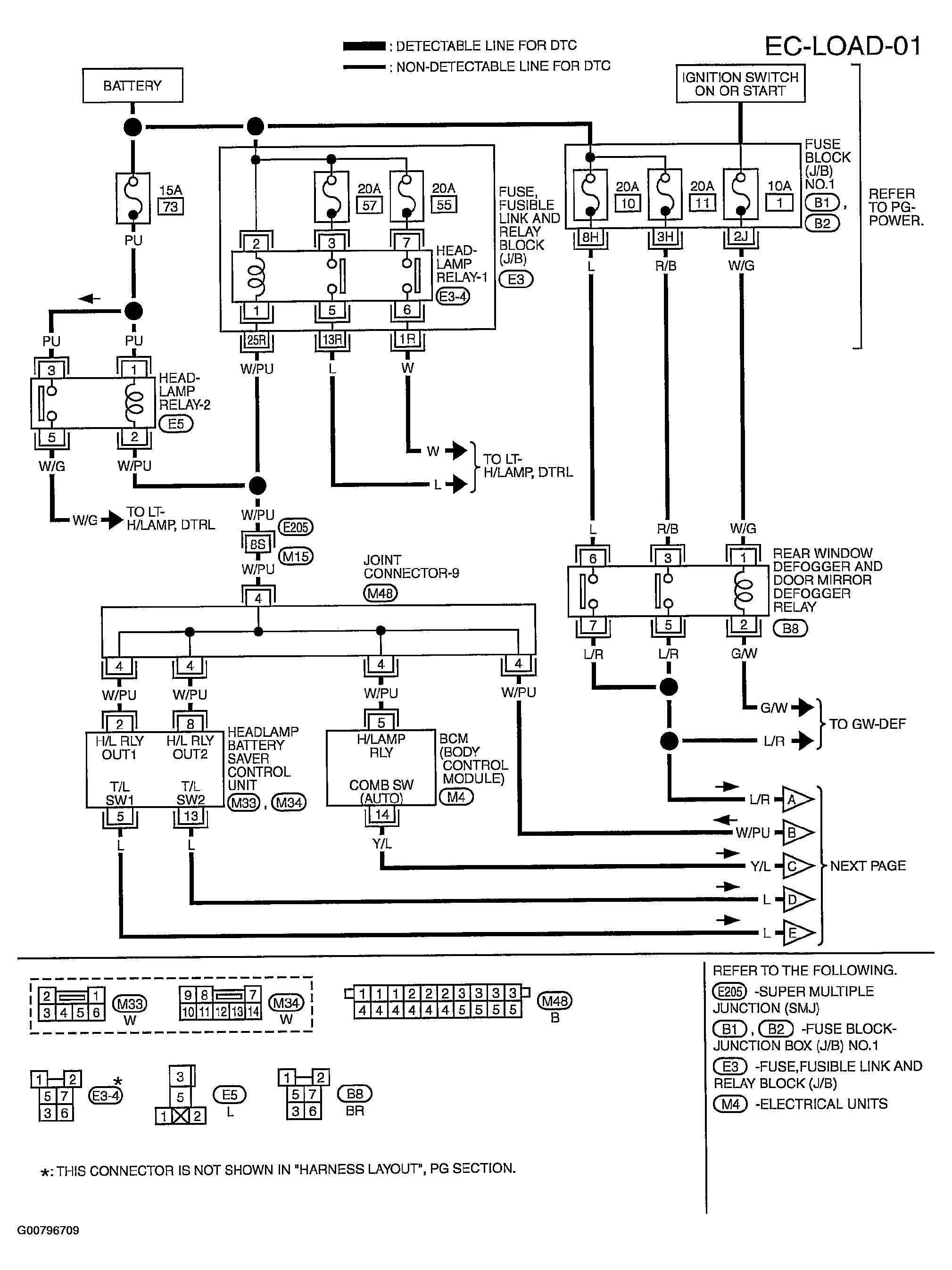

Fig 1: Circuit Diagram - Electrical Load Signal (1 Of 2) - EC-LOAD-01

Courtesy of NISSAN MOTOR CO., U.S.A.

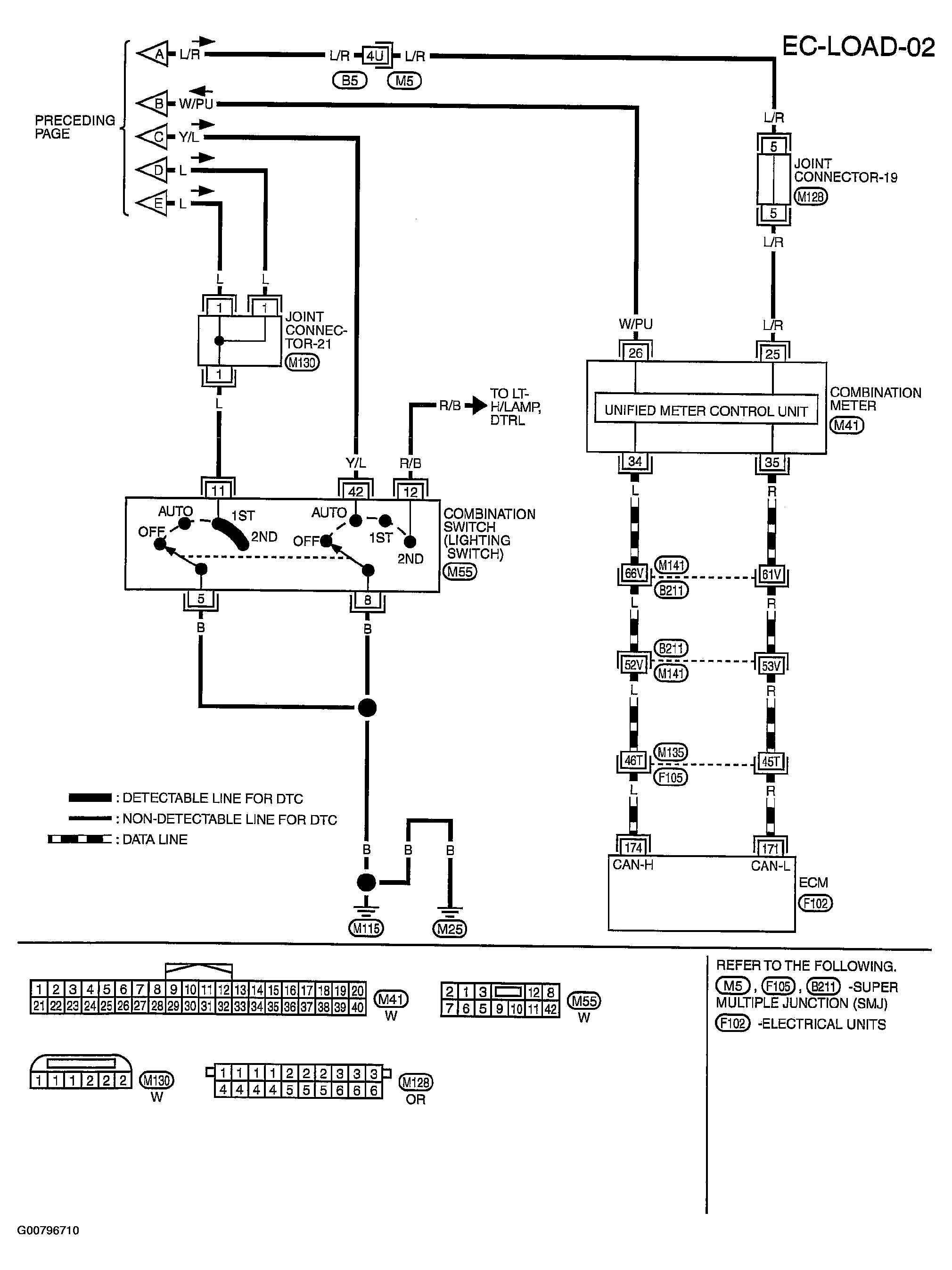

Fig 2: Circuit Diagram - Electrical Load Signal (2 Of 2) - EC-LOAD-02

Courtesy of NISSAN MOTOR CO., U.S.A.
