Evaporative Emission Line Drawing

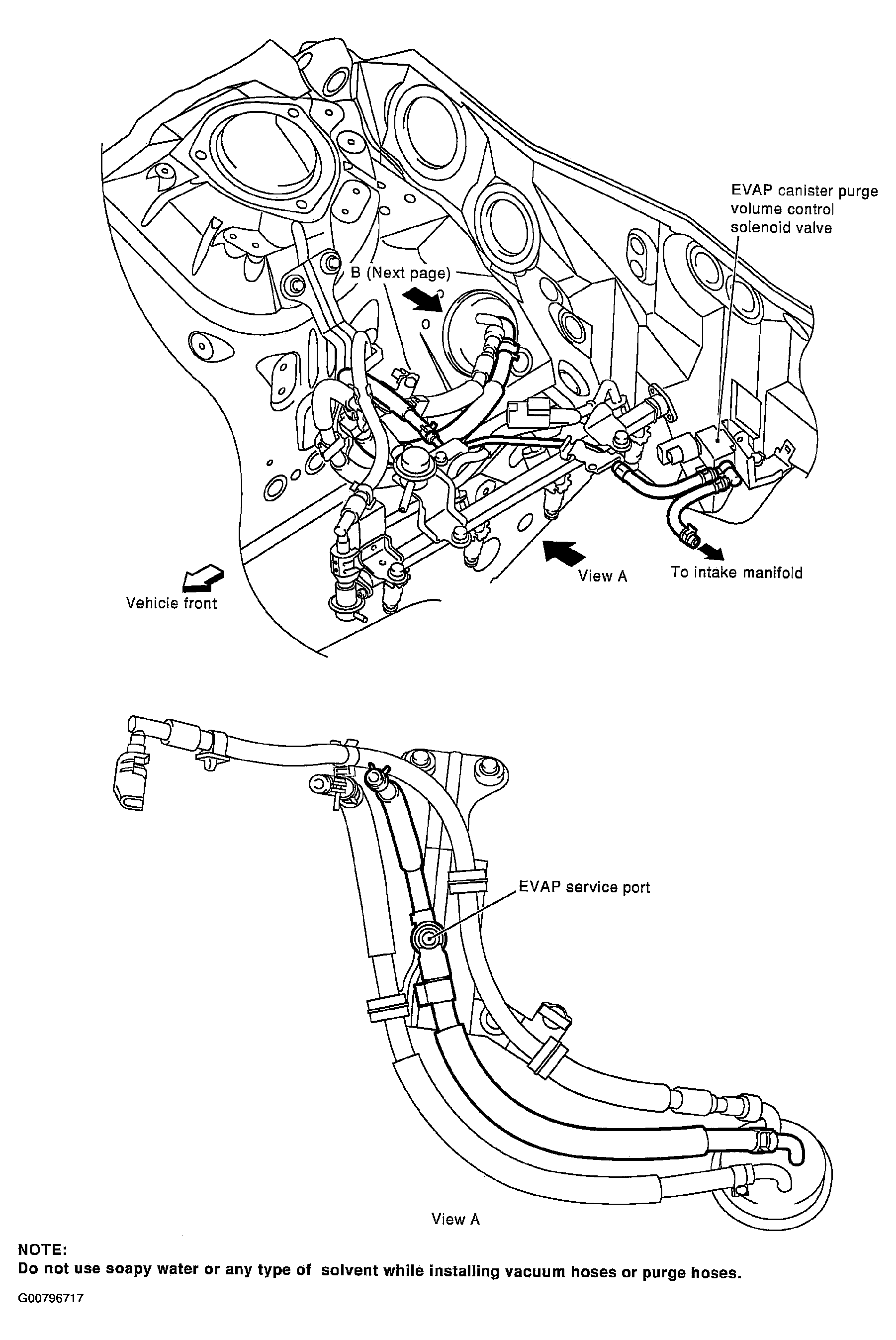

Fig 1: Evaporative Emission System (1 Of 2)
G00796717Courtesy of NISSAN MOTOR CO., U.S.A.

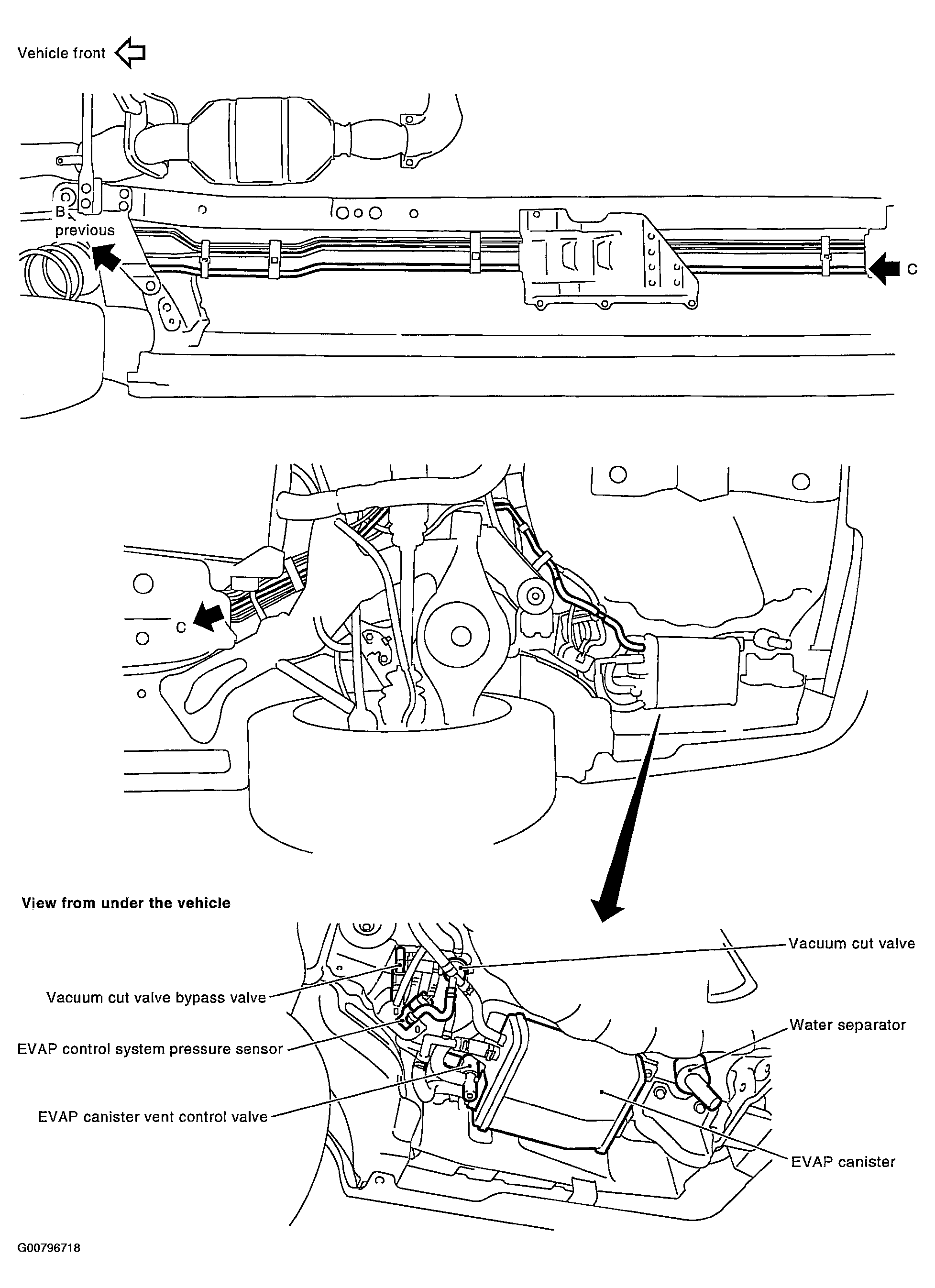

View from under the vehicle

Fig 2: Evaporative Emission System (2 Of 2)
G00796718Courtesy of NISSAN MOTOR CO., U.S.A.
