On Board Diagnostic System Function
The on board diagnostic system has the following four functions.

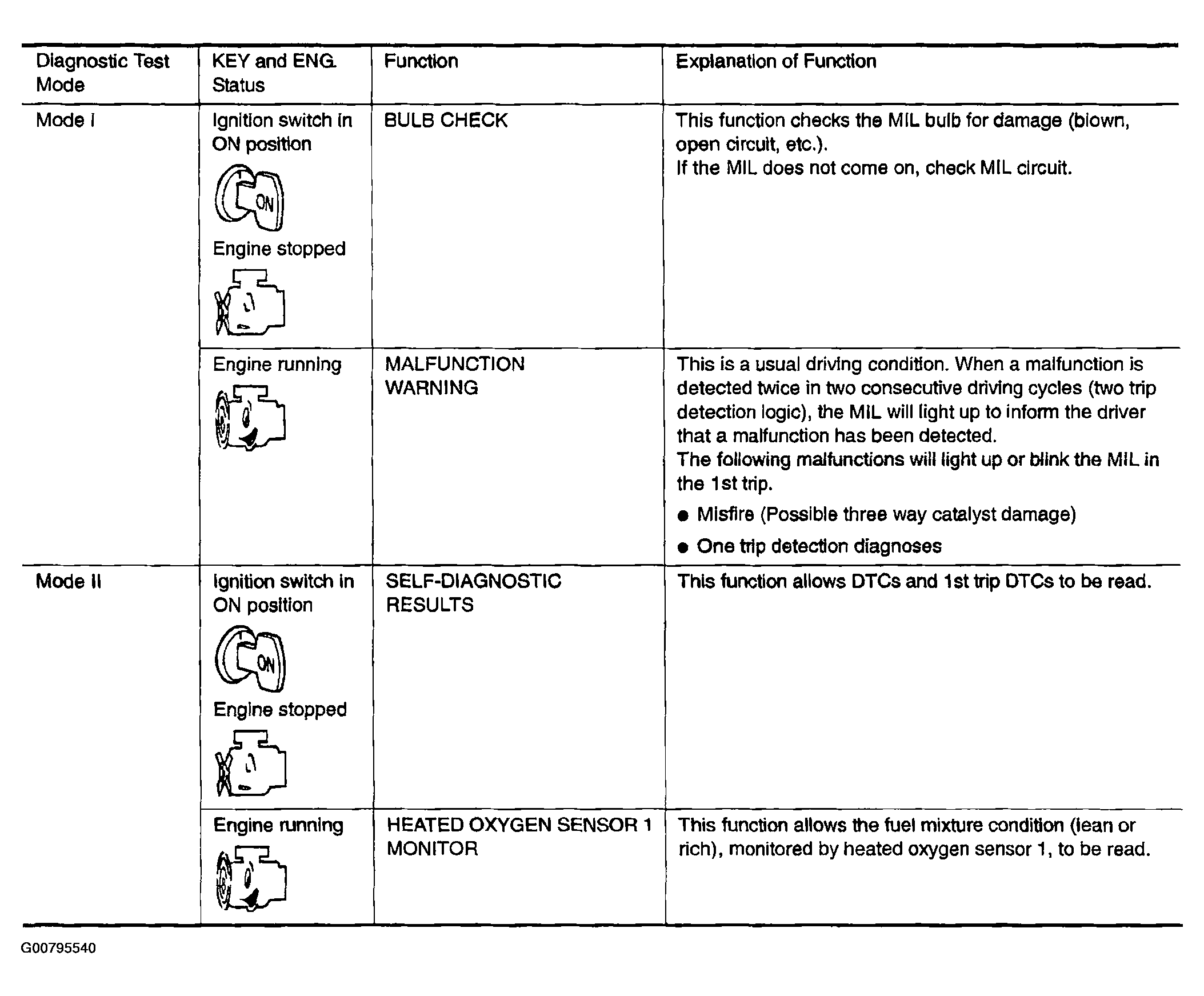

Fig 1: Identifying On Board Diagnostic System Function Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
