Commercial Service Tools

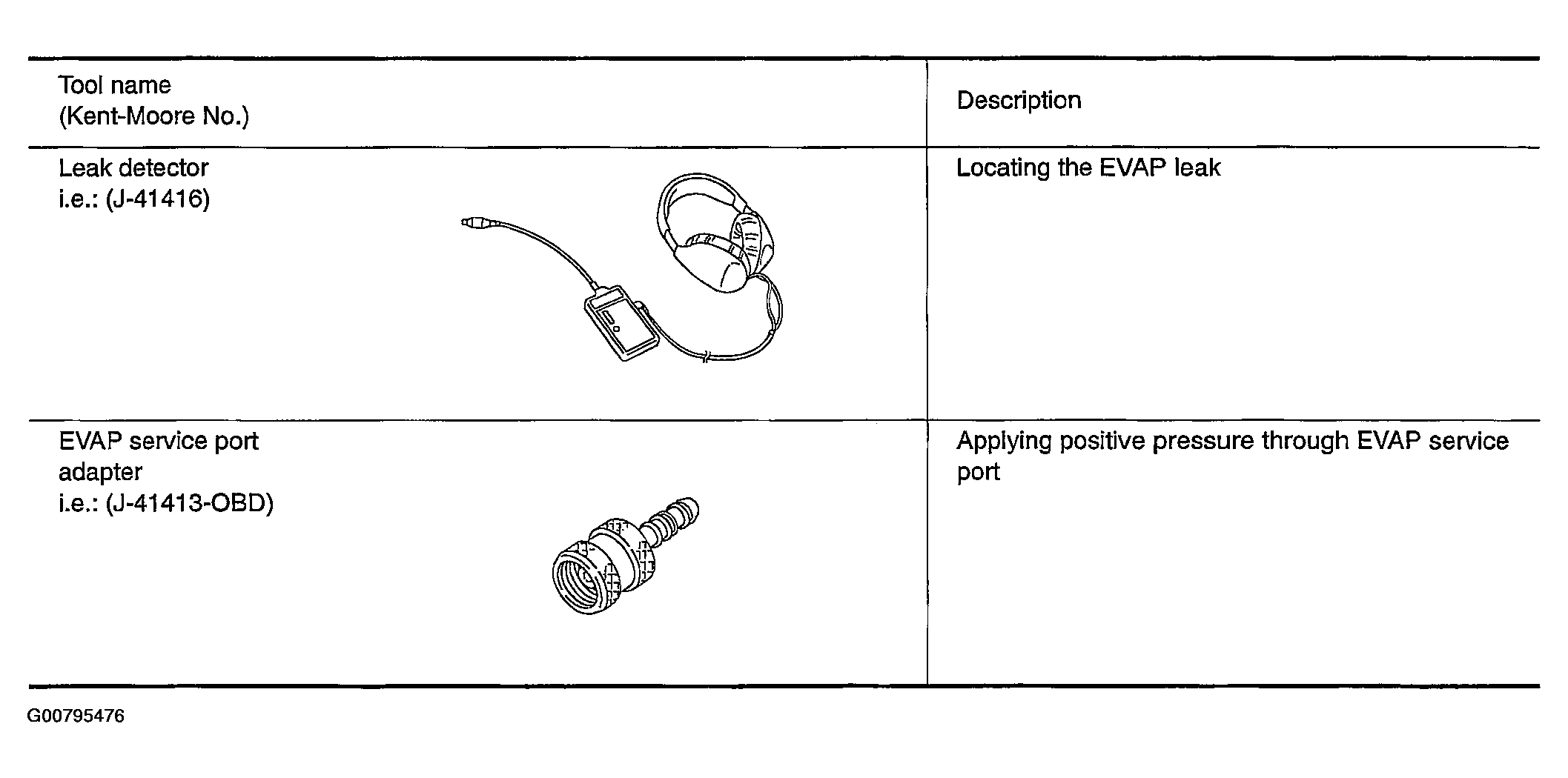

Fig 1: Identifying Kent-Moore Commercial Service Tools (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

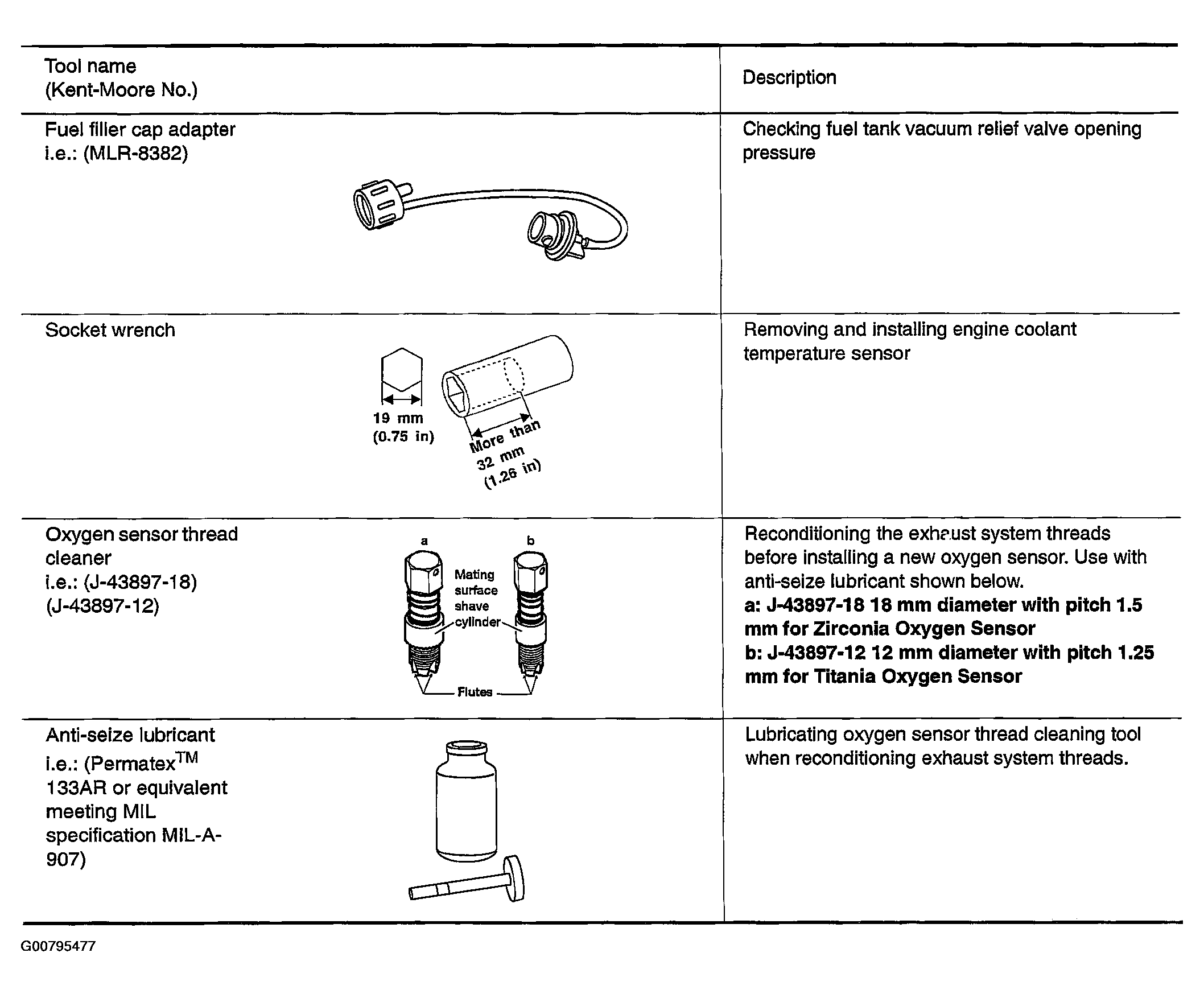

Fig 2: Identifying Kent-Moore Commercial Service Tools (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
