Consult-II Function
›
Work Support Mode
›
Work Item
Work Item

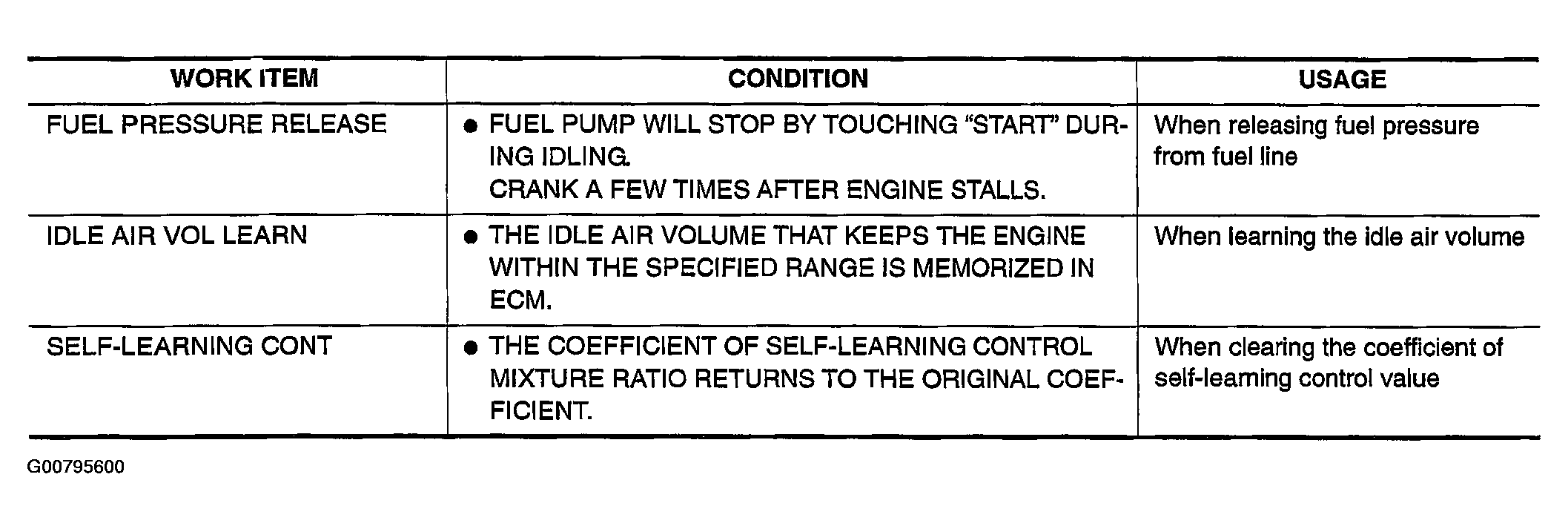

Fig 1: Identifying Work Items In Work Support Mode (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

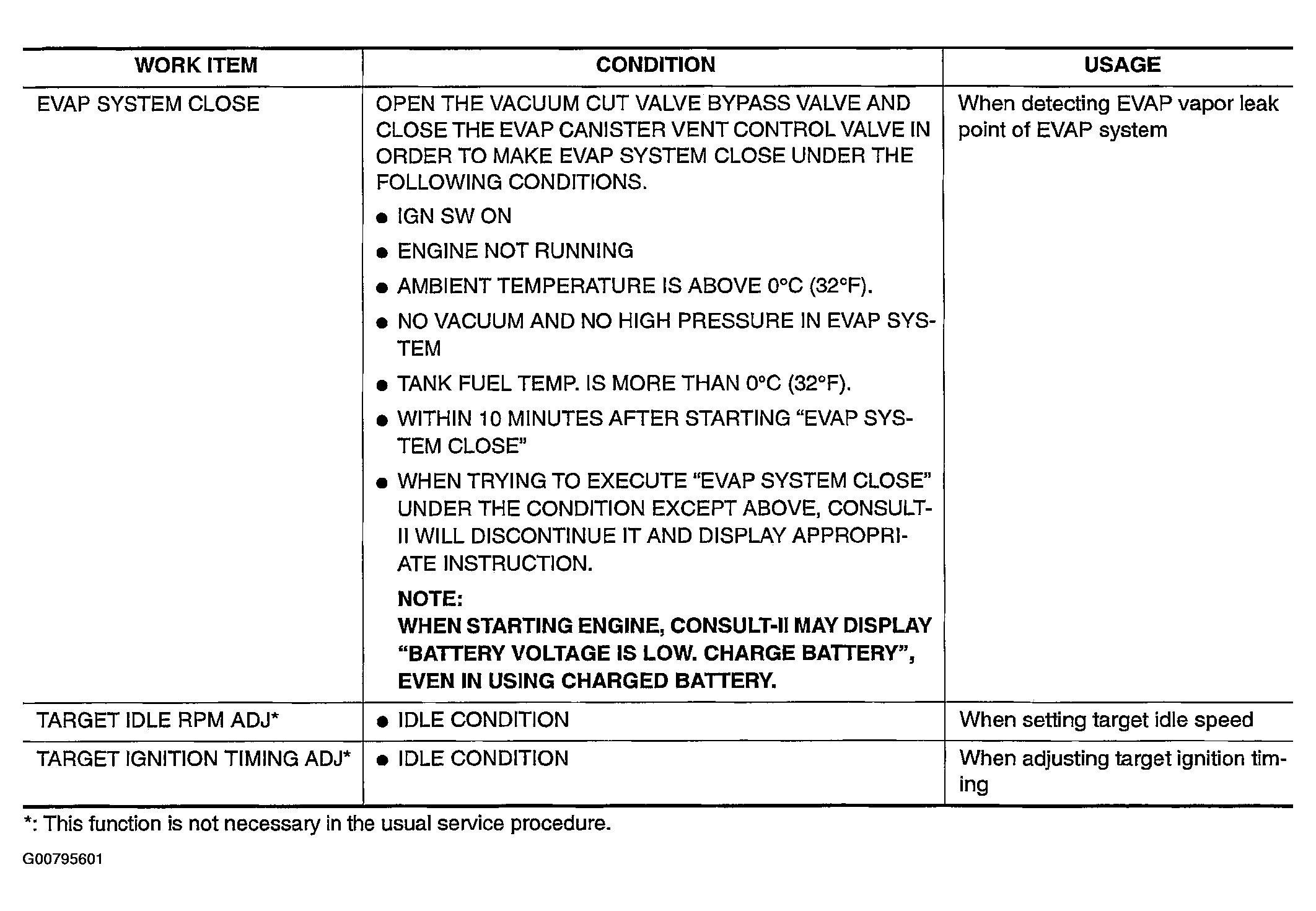

Fig 2: Identifying Work Items In Work Support Mode (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
