System - Engine Mechanical & Other

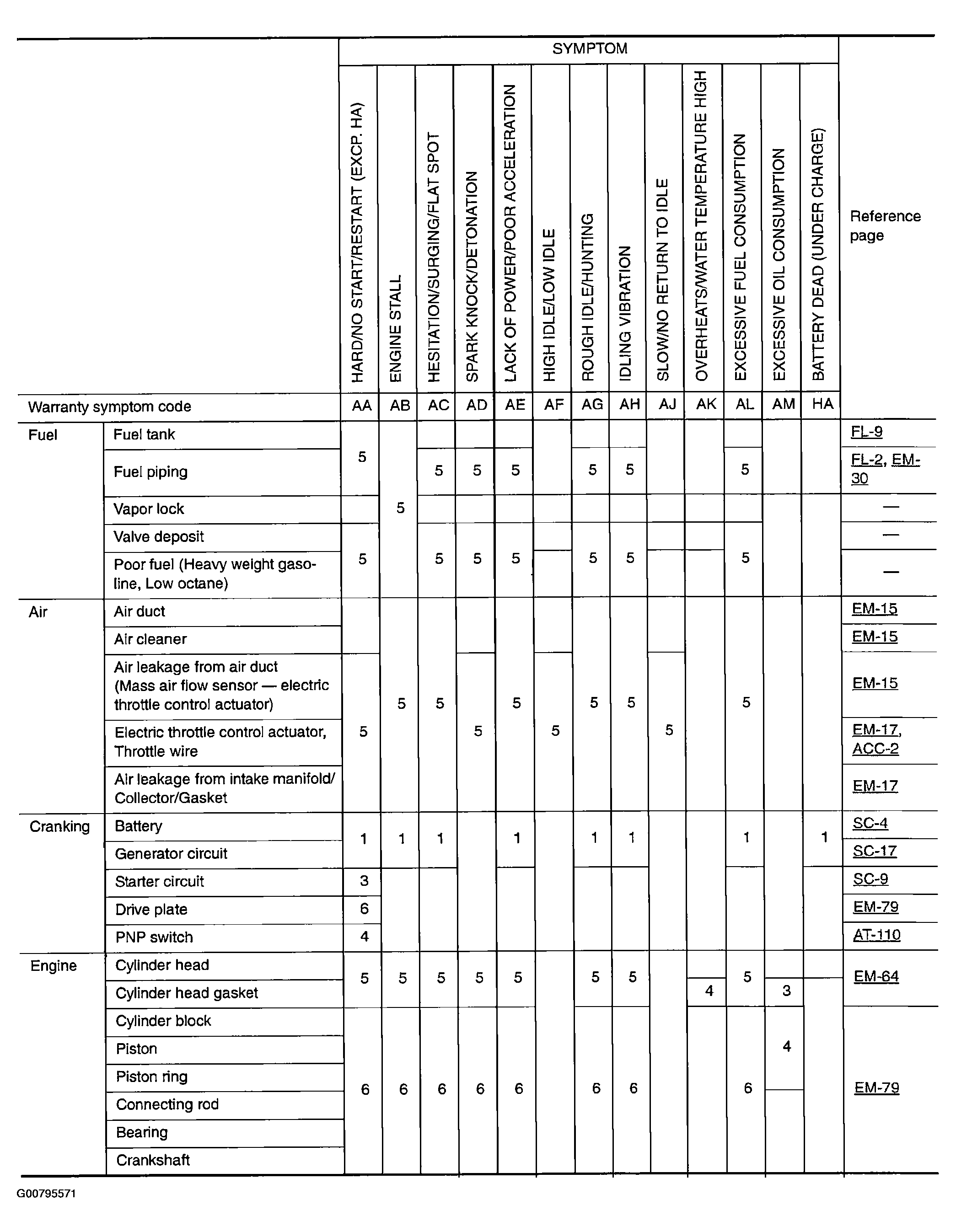

Fig 1: Identifying Engine Mechanical Information (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

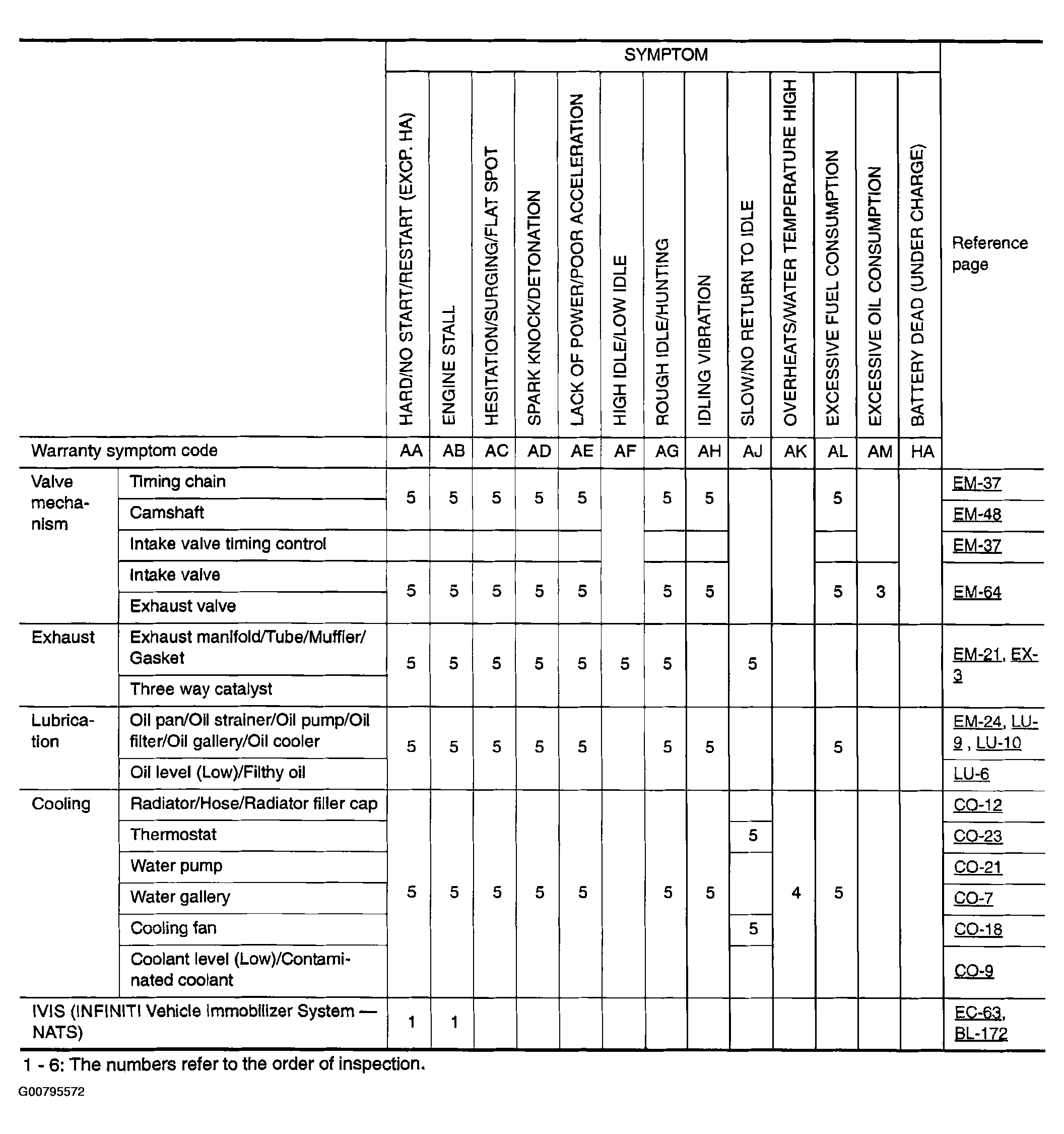

Fig 2: Identifying Engine Mechanical Information (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
