Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
Trouble Diagnosis
›
Trouble Diagnosis Introduction
›
Work Flow
›
Flow Chart
Flow Chart

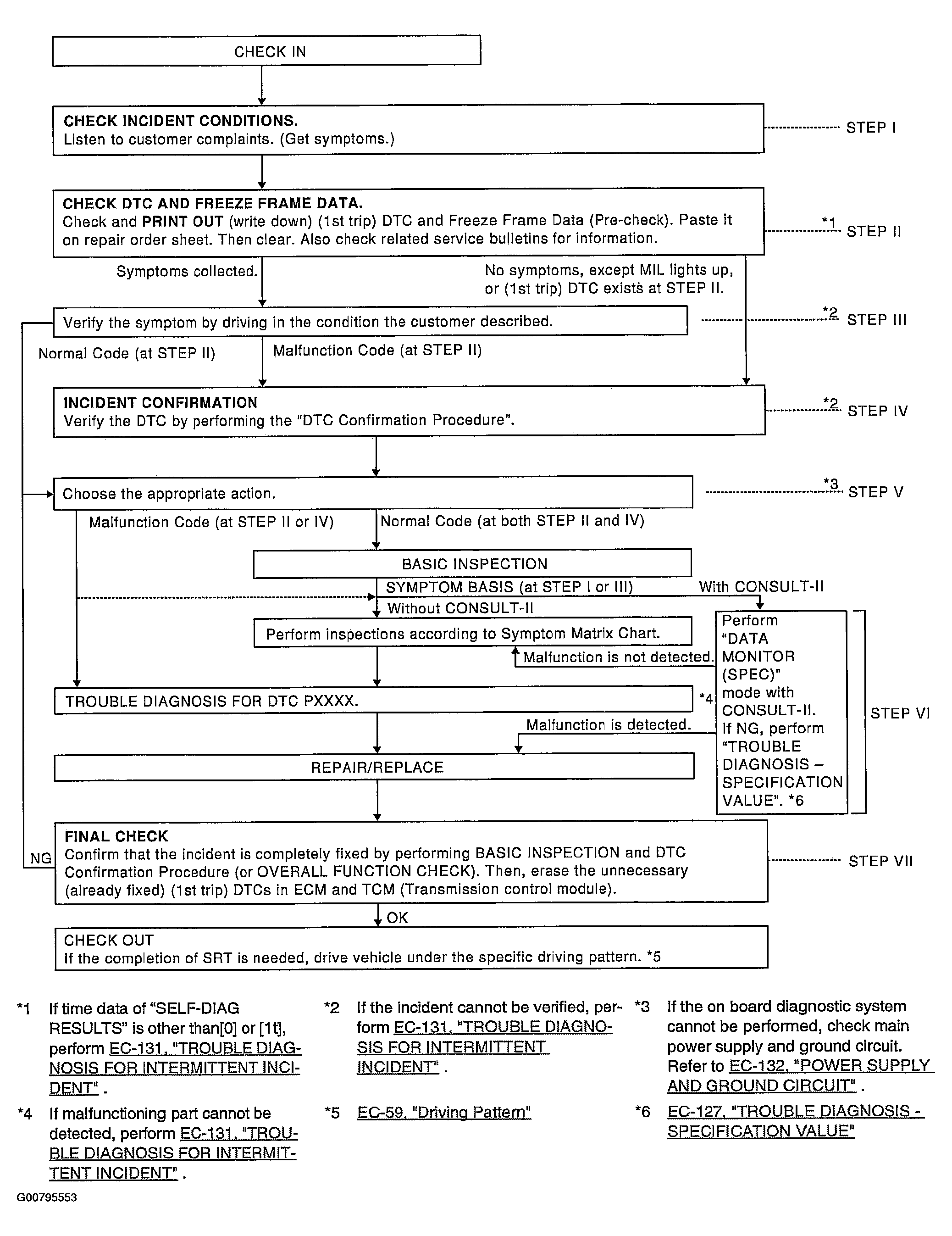

Fig 1: Identifying Work Flow DTC Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
