Engine Control System
›
NISSAN Torque Demand (NTD) Control System
›
Input/Output Signal Chart
Input/Output Signal Chart

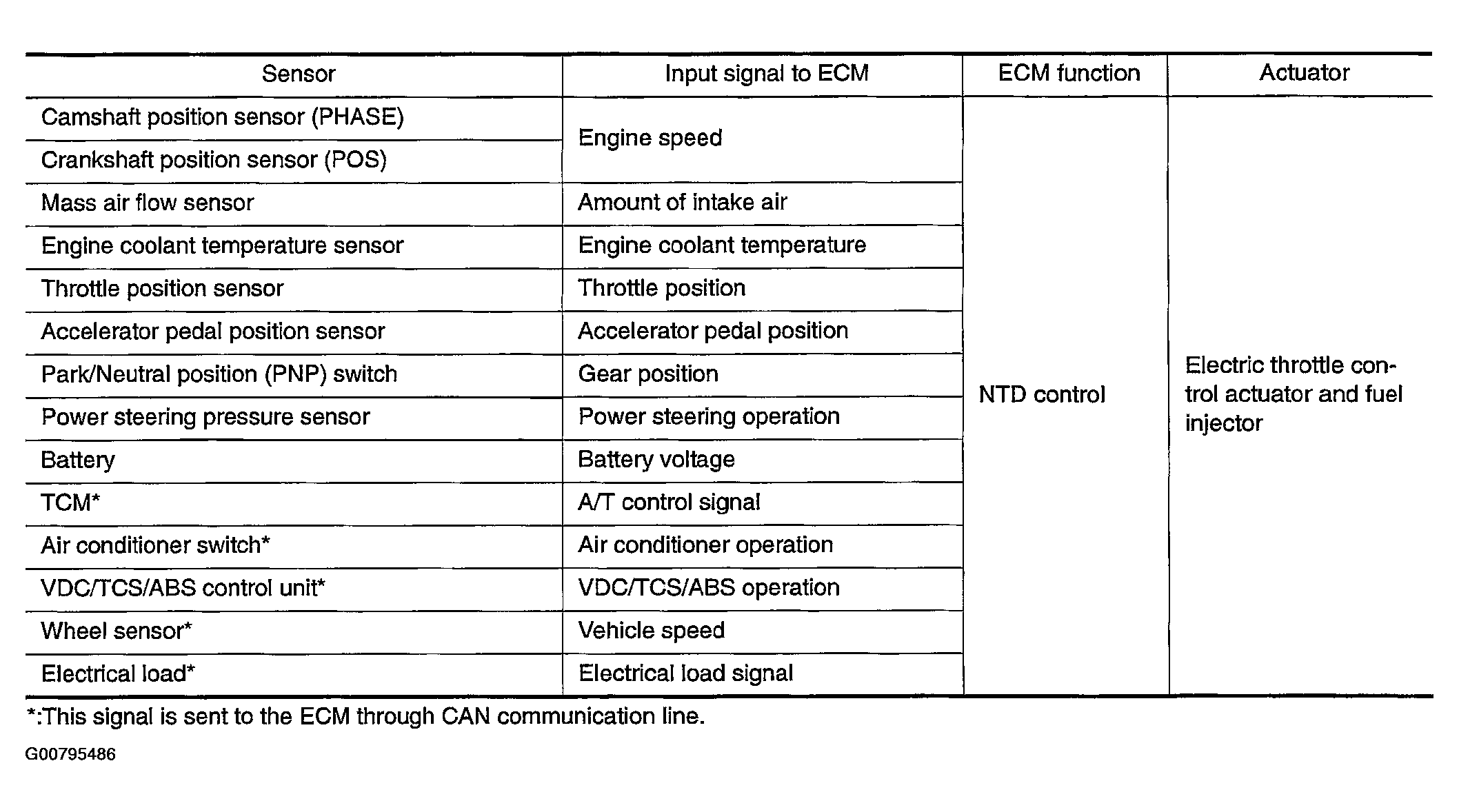

Fig 1: Identifying (NTD) Control System Input/Output Signal Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
