Engine Control System
›
System Chart
System Chart

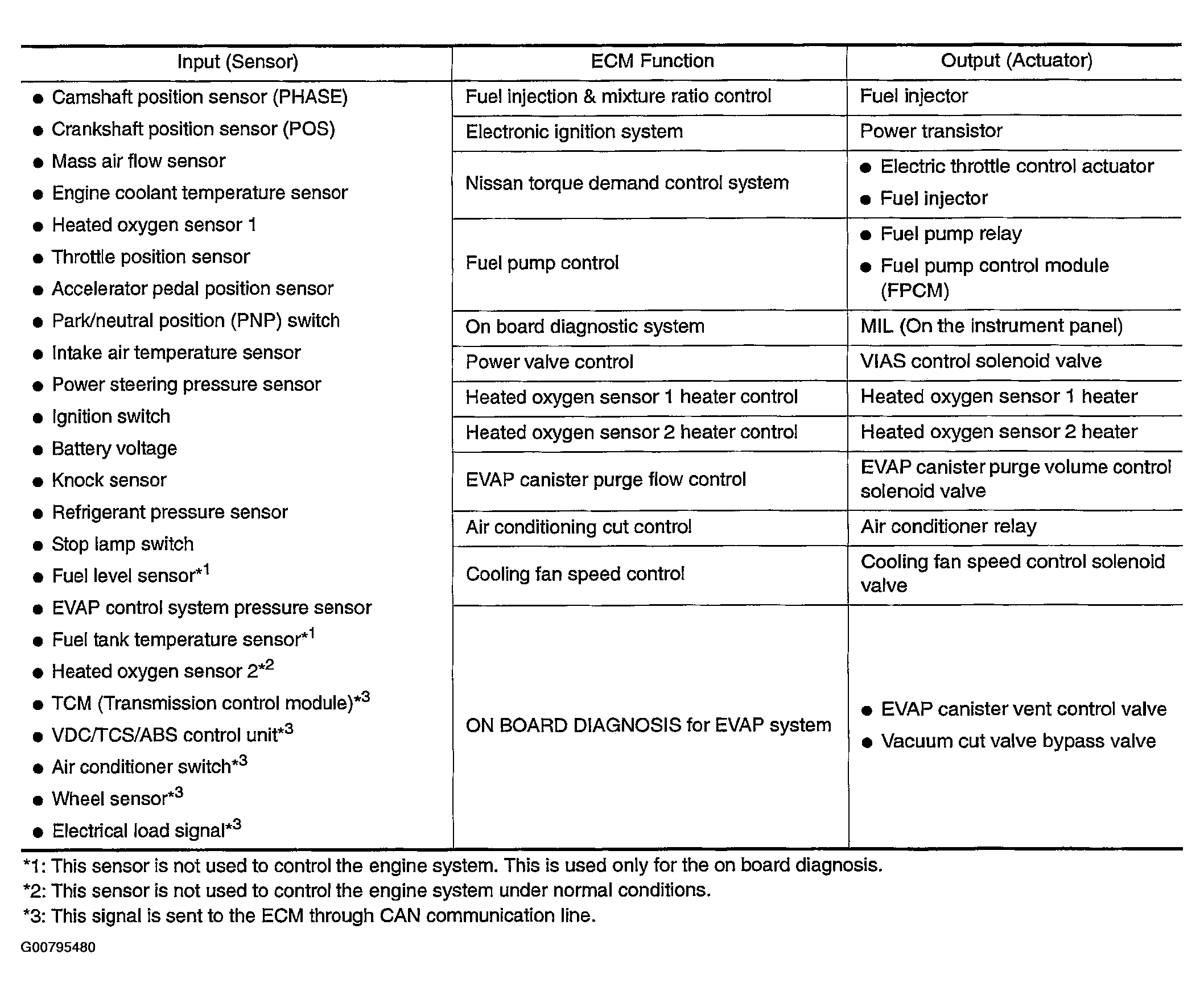

Fig 1: Identifying Engine Control System Input/Output Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
