Disassembly And Assembly: Notes

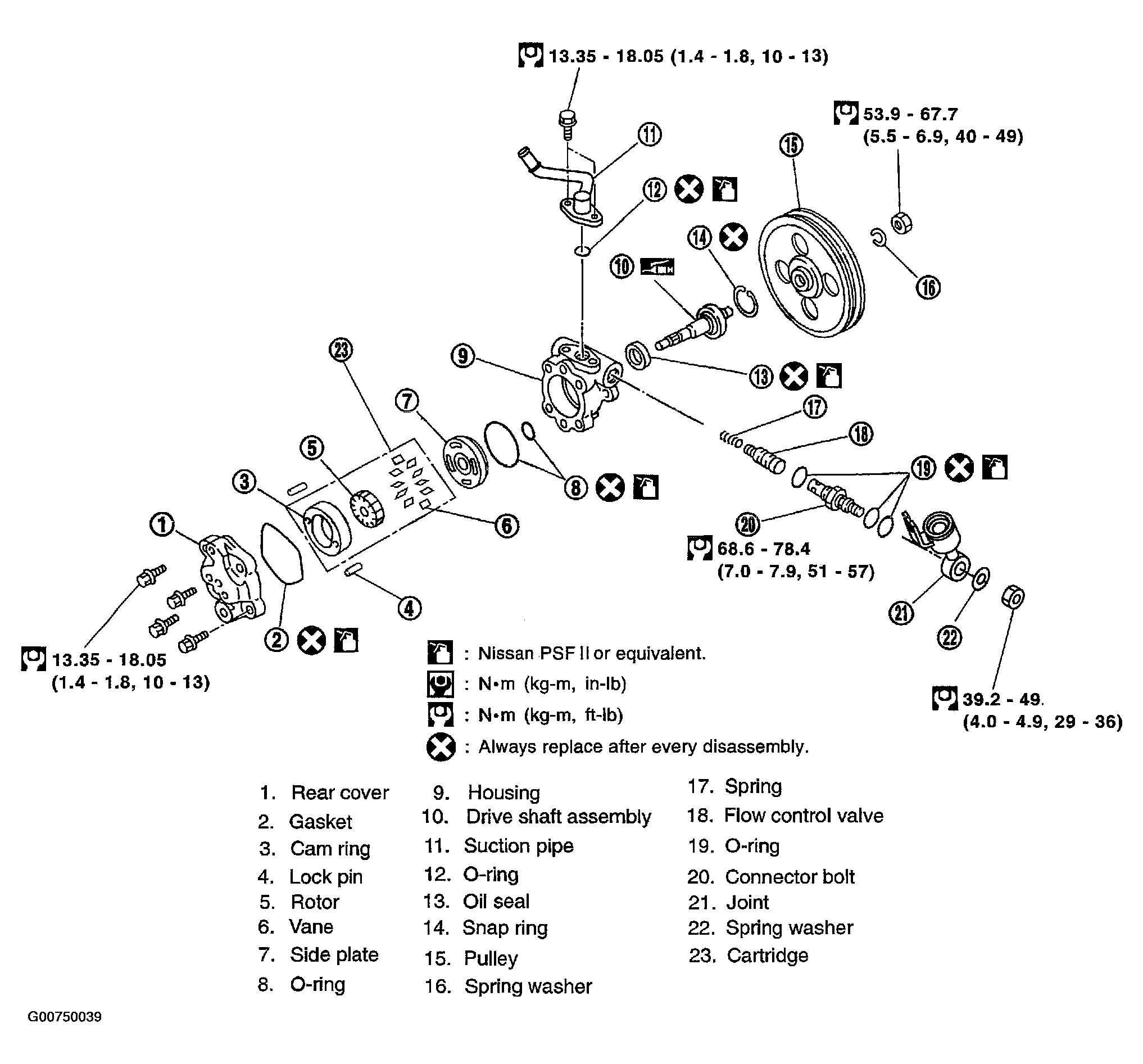

Fig 1: Assembling & Disassembling Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
