Removal And Installation: Removal

Set vehicle to straight-ahead direction.
Remove driver air bag module. Refer to DRIVER-SIDE AIR BAG MODULE .
Remove steering upper and lower covers.
Remove combination switch & spiral cable. Refer to SPIRAL CABLE .
Remove hood opener.
Remove cover of ignition switch.
Remove screw for the instrument lower driver panel as shown.

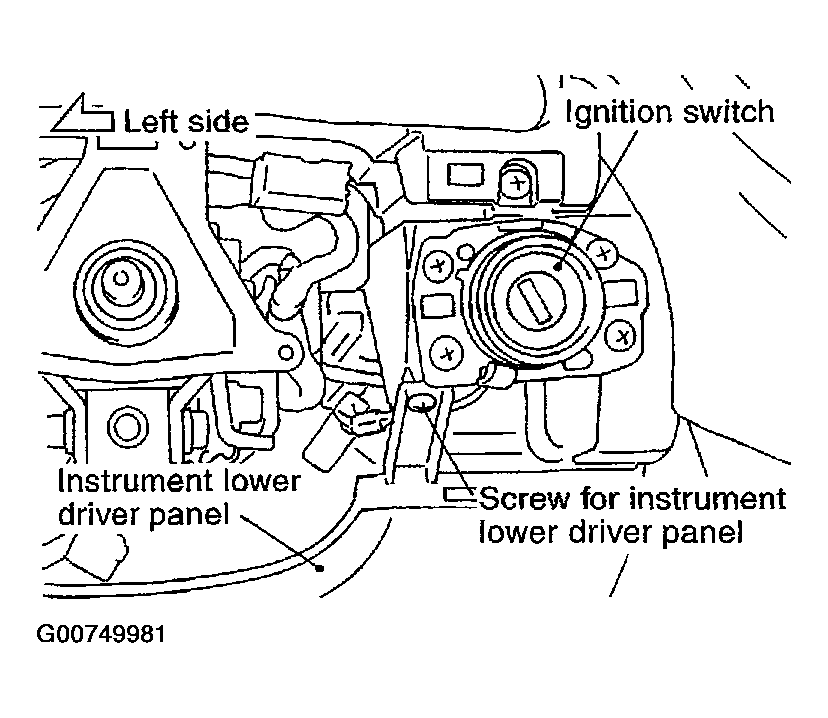

Fig 1: Locating Screw For Instrument Lower Driver Panel
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the TCS OFF switch harness connector, data link connector for CONSULT-II.
Disconnect steering lock harness connector from steering column.
Remove knee protector lower. Refer to INSTRUMENT PANEL ASSEMBLY .

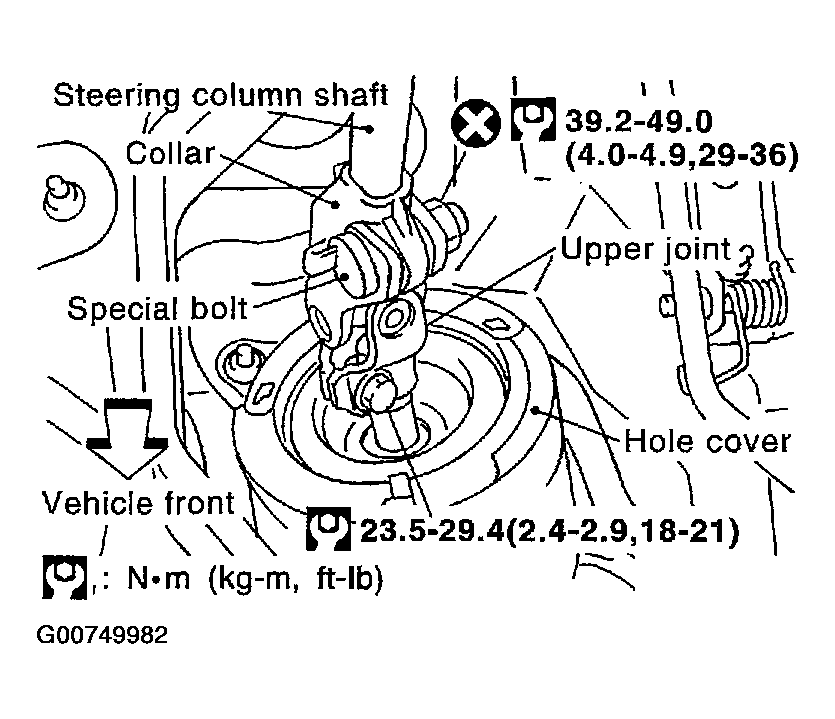

Separate steering column shaft from upper joint in the following procedure.
1. Loosen nut of special bolt for the lower yoke of upper joint.
  NOTE: Do not reuse nut for special bolt.
2. Turn steering wheel to the left to appear set ribs of collar.
3. Fix steering wheel with a string in order not to turn then, remove special bolt and nut.

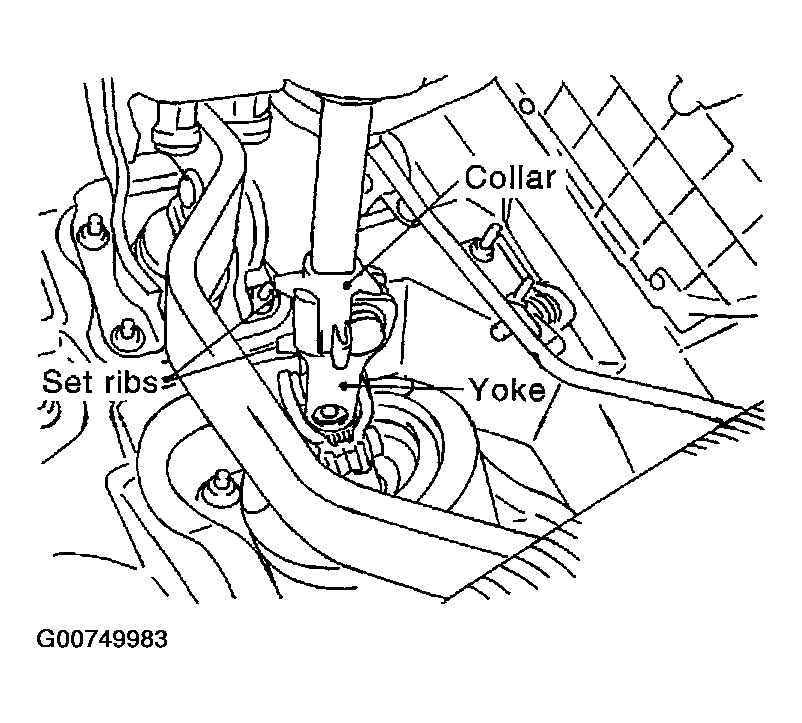

  Fig 3: Locating Set Ribs, Collar, & Yoke Of Steering Column
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Expand the set ribs outside of yoke lightly, then disengage them from yoke.
5. Raise yoke to separate from collar. As a result, steering column shaft separates from upper joint.
  CAUTION: Be careful to handle collar because it is easily broken.

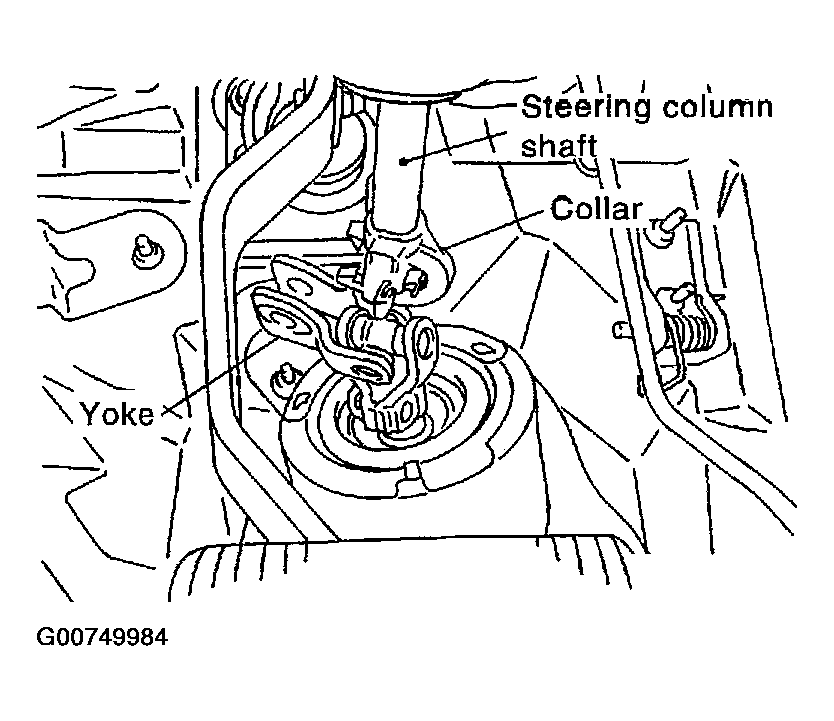

  Fig 4: Locating Yoke, Collar, & Steering Column Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mounting bolts and nuts from steering column assembly, then remove it from the vehicle.

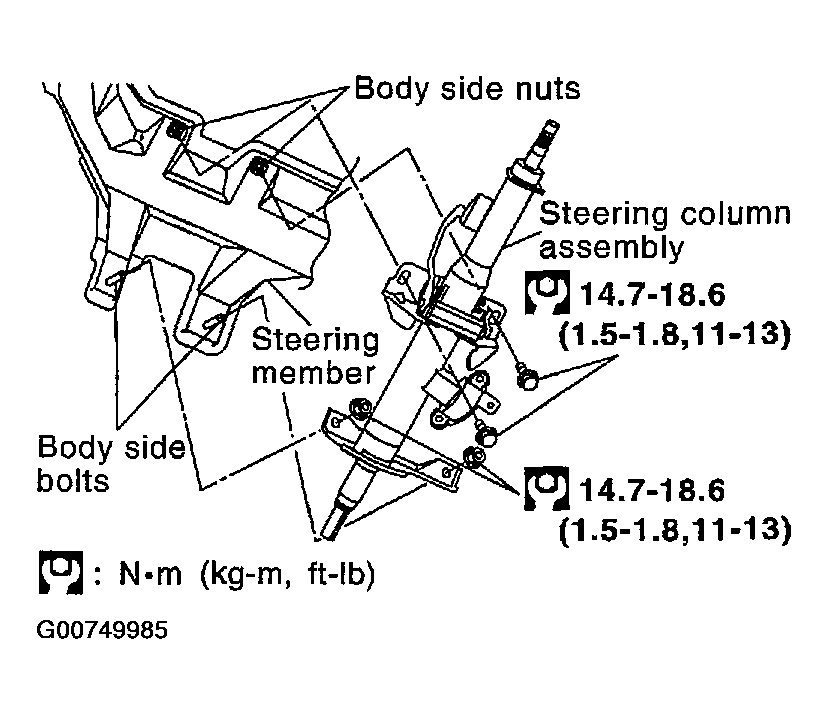

Fig 5: Locating Body Side Bolts, Steering Member & Steering Column Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mounting bolts, remove hole cover.

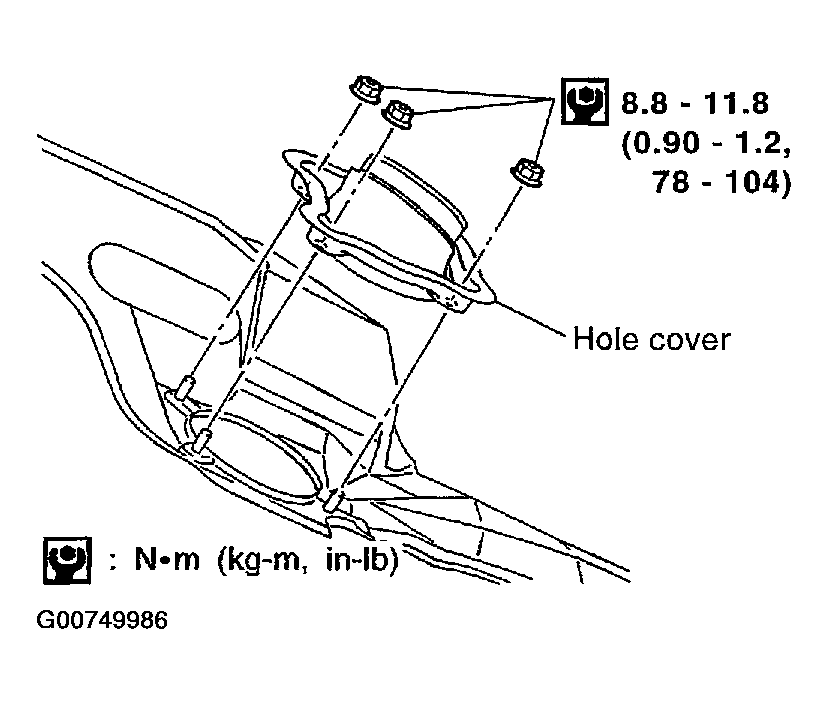

Fig 6: Removing Mounting Bolts & Hole Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
