Automatic Transmission
›
A/T Control System
›
Control Valve
›
Function Of Control Valve
Function Of Control Valve

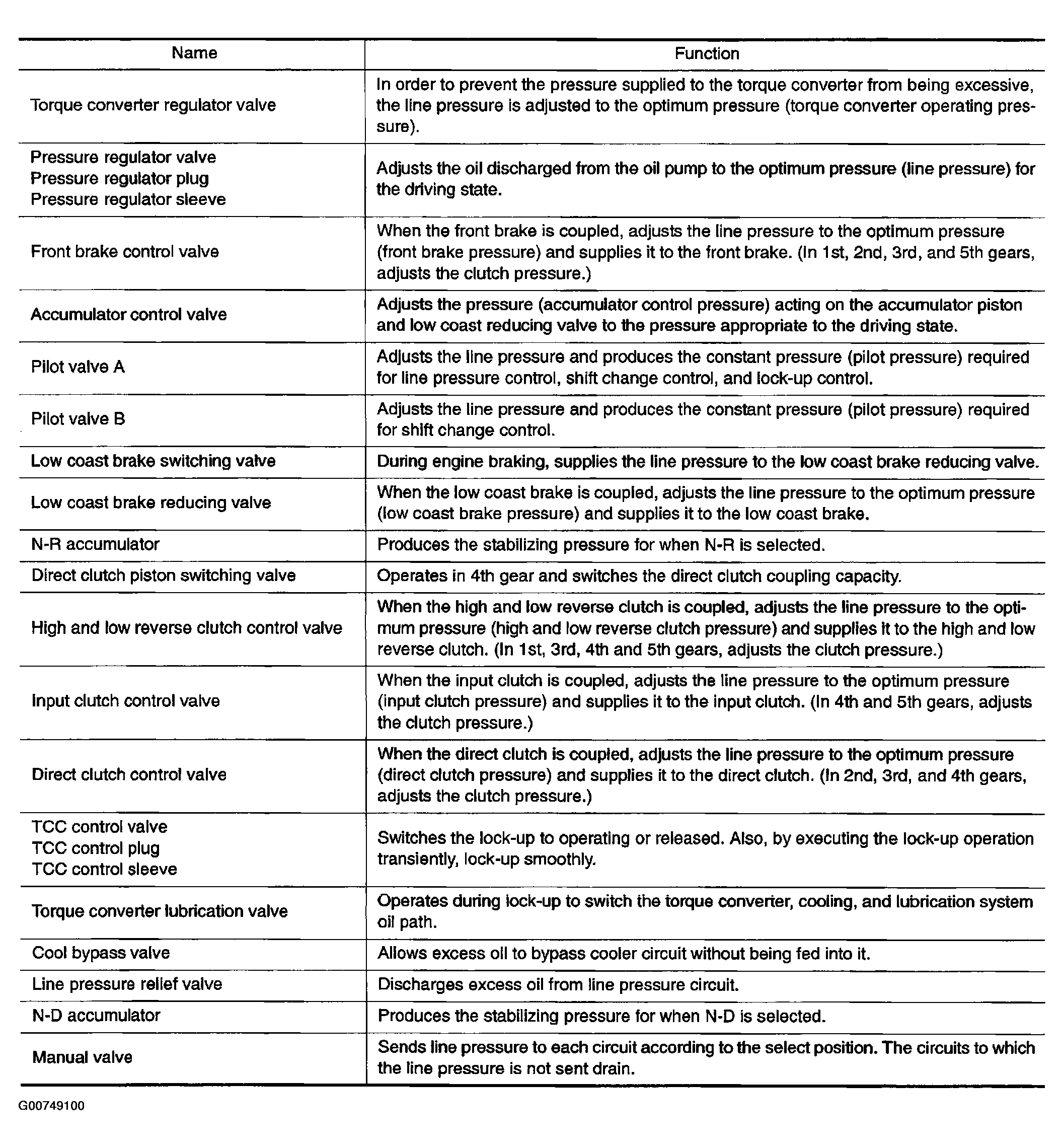

Fig 1: Identifying Control Valve Functions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
