A/T Shift Lock System
›
Shift Lock Control Unit Reference Values
›
Shift Lock Control Unit Inspection Table
Shift Lock Control Unit Inspection Table

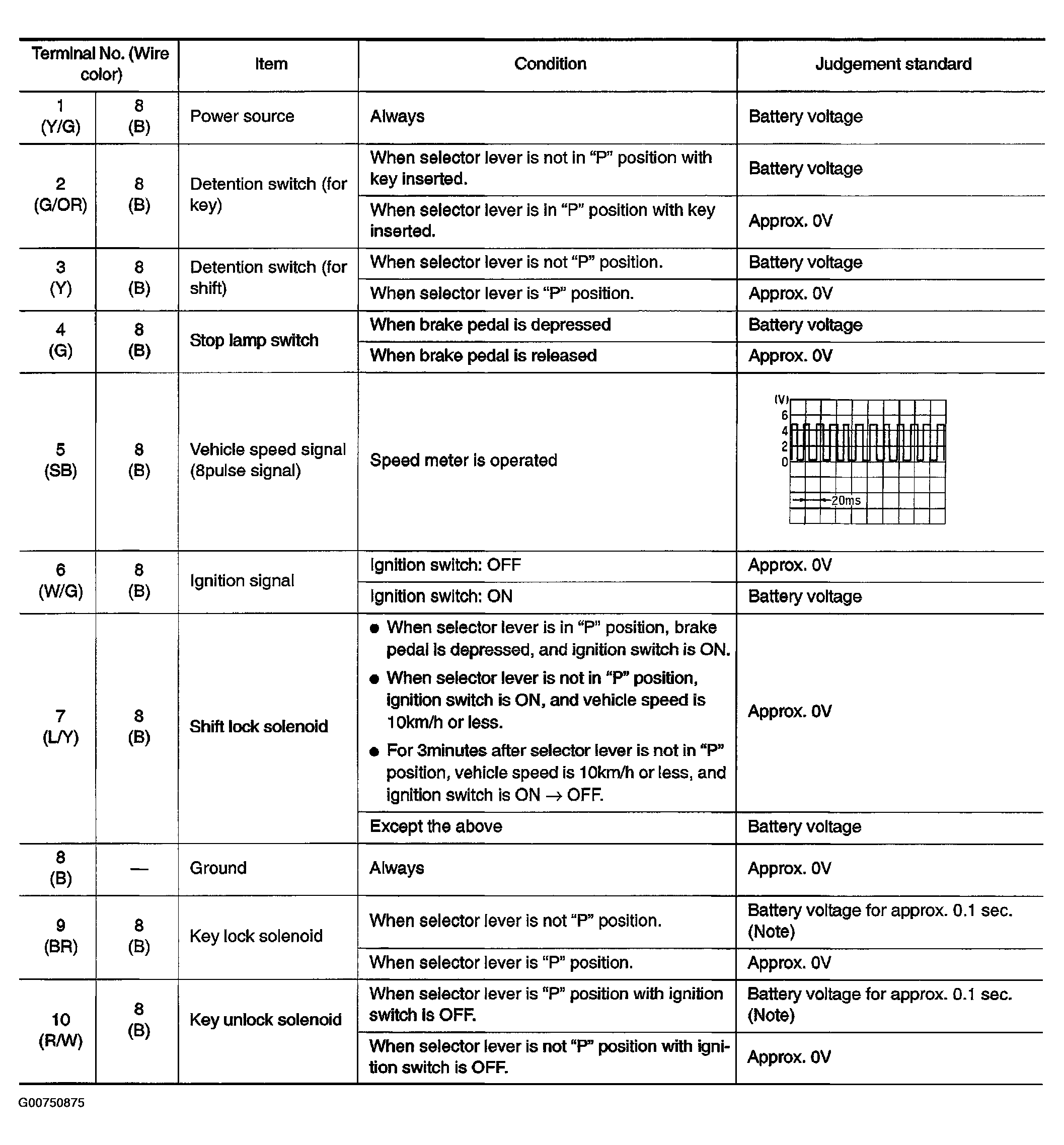

Fig 1: Shift Lock Control Unit Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
